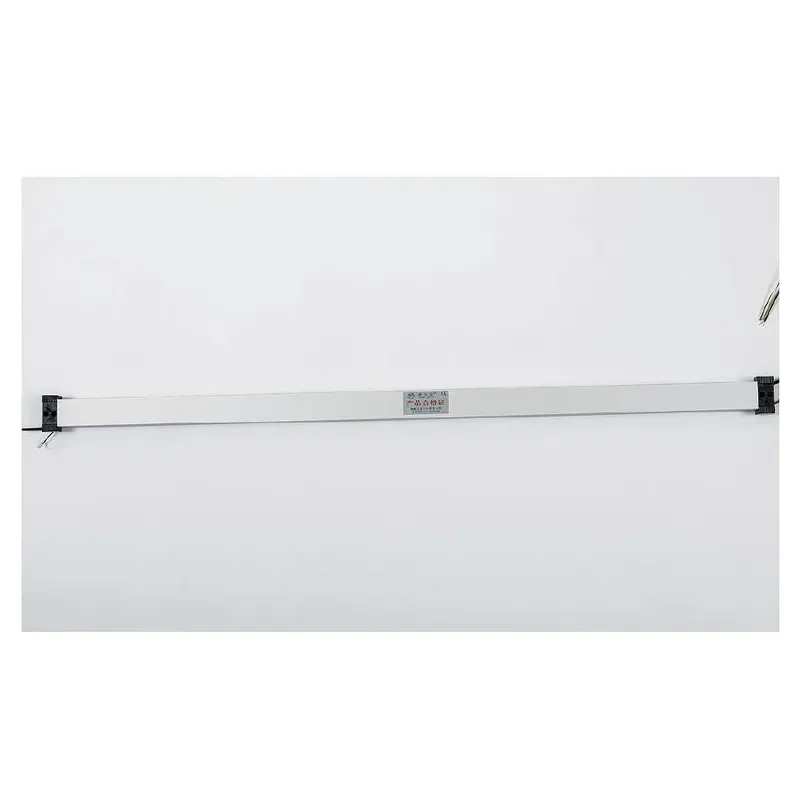

30 Motor Series Magnetic Levitation Sliding Door Operator
Compact magnetic levitation operator for light interior sliding doors from 40 to 120 kg, with a 30 mm x 20 mm rail section, 120 W rated power and Bluetooth app control.
Specifications
- Door-leaf mass
- 40-120 kg
- Opening speed
- 0.2-0.5 m/s
- Closing speed
- 0.2-0.5 m/s
- Hold-open time
- 0-30 s
- Rated power
- 120 W
- Average return power
- 30 W
- Operating temperature
- -40C to +60C
- Rail section
- 30 mm wide x 20 mm high; 1.0 mm wall thickness
The compact 30 Motor Series is designed for lighter sliding doors such as kitchen doors, wardrobe doors, bedroom doors and shower-room doors. Custom rail development is available for project-specific door and track requirements.
The drive uses electromagnetic force through a compact linear-drive structure, so the drive path has no conventional belt friction. Standby consumption is stated in the source catalogue as approximately 10 W.
Standard configuration: drive unit, Bluetooth module, power system and main control unit.
Operating functions
Automatic, jog/inching, manual, one-way and locking modes.
Adjustable opening and closing speeds, braking distances and hold-open time.
Normally open and automatic full-open functions.
Automatic memory and push-to-open operation.
Obstruction reversal, overload protection and over-temperature alarm.
Centralised control capability and smartphone Bluetooth app support.
Standard configuration
Aluminium rail, drive unit, Bluetooth module, power system, aluminium moving rail, hanger assembly, load-bearing wheels, high-performance magnet and main control unit.
Hardware options
Available hardware for this operator includes glass hangers, stoppers, wooden-door hangers, floor-door connectors, electric locks, quick-install hangers and pulley assemblies. Selection depends on the door material, leaf construction and whether the door is framed, frameless or timber.
Activation and access-control options
Activation and access-control devices available for this operator include touch switches, remote controllers, miniature sensors and short-range presence sensors, round wireless switches, long-range presence sensors, wireless press switches and fingerprint terminals.
The required combination of activation and access-control devices is confirmed against the project configuration. Please state the intended devices, wiring route and power supply when requesting a quotation.
Information required for selection
Please provide: door type and material; number of door leaves and leaf weight; clear opening width and travel distance; required operator length and available installation space; surface-mounted or concealed installation; required activation devices and access-control interfaces; and power supply, usage frequency and environmental conditions.
Final capacity, dimensions, functions and component selection must be confirmed against the project drawing, door construction and the latest approved AURWEN technical data before ordering or installation.
