Motion Sensor

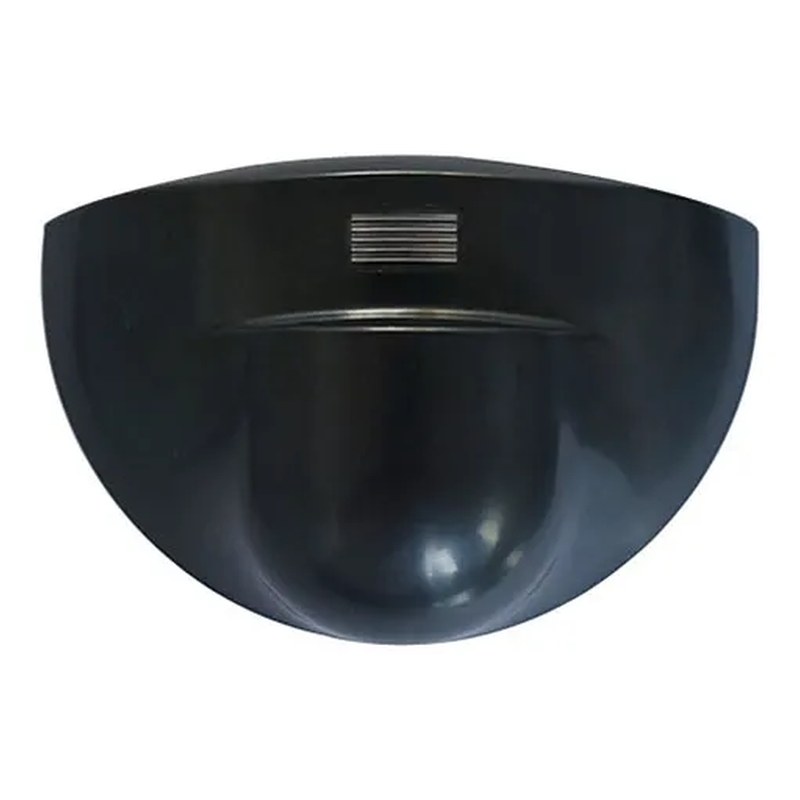

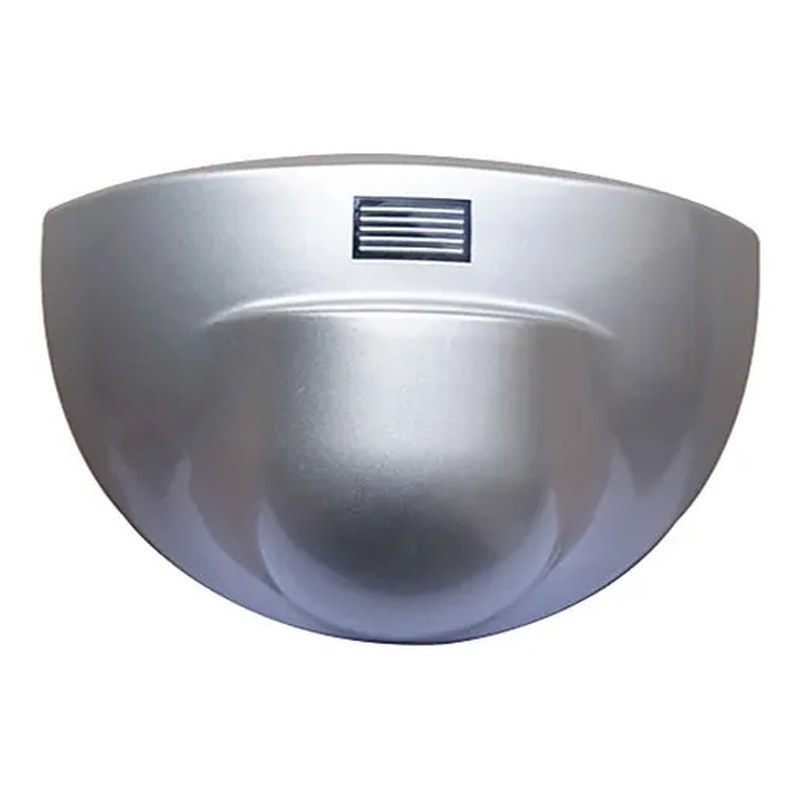

ARW-204G MICROWAVE SENSOR (BAT SHAPE)
(UNIDIRECTIONAL) MI ARW-204G/204GD Can be used in all kind of automatic door as induction function, high sensitivity induction, quick and ac
Specifications
- Technology
- Microwave & microwave processor
- Transmission frequency
- 24.125GHz
- Transmission voltage
- <20dbm E1RP
- Emission frequency density
- <5mw/cm²
- Max. install height
- 4000 mm(5000mm can be customized)
- Detecting mode(204GD)
- One-way motion
- Installation inclination
- 0°~90°（longitudinal）-30°~30° (crosswise)
- Power supply
- AC/DC 12-24V ±10% (50-60Hz)
- External dimension
- 121(L)x80(W)x51(H)mm
- Active current(204G/204GD)
- 73mA/85A
- Static current(204G/204GD)
- 36mA/43A
- Using environment
- -20℃~55℃
- Holding time(204G/204GD)
- 2s/1s
Microwave Sensor (Bat Shape)
(UNIDIRECTIONAL) MI ARW-204G/204GD Can be used in all kind of automatic door as induction function, high sensitivity induction, quick and accurate response, strong anti-interference, fully used in commercial industry and automatic control and other demanding fields.
(204GD)This unidirectional microwave sensor that specifically detects the approaching signal and shields the departuring signal.
It is very suitable for applications such as high speed doors, which can effectively avoid self- inductance of the door body and misoperation opening of non-close targets.
Adopt intelligent optimized detection circuit, which greatly improved the sensitivity and stability of inductive detection.
Flexible antenna adjustment mode for X-Y axis ensures accurate regional induction adjustment.
Imported 24.125GHz microwave sensing module, not affected by temperature and humidity and other environmental fact
