Safety Sensor
ARW-227 MOTION/ROTATION DOOR TOP SCAN
MOTION/ROTATION DO ARW-227 Can accurately detect the moving or fixed human body and objects, avoid all kinds of rotating automatic sensing d

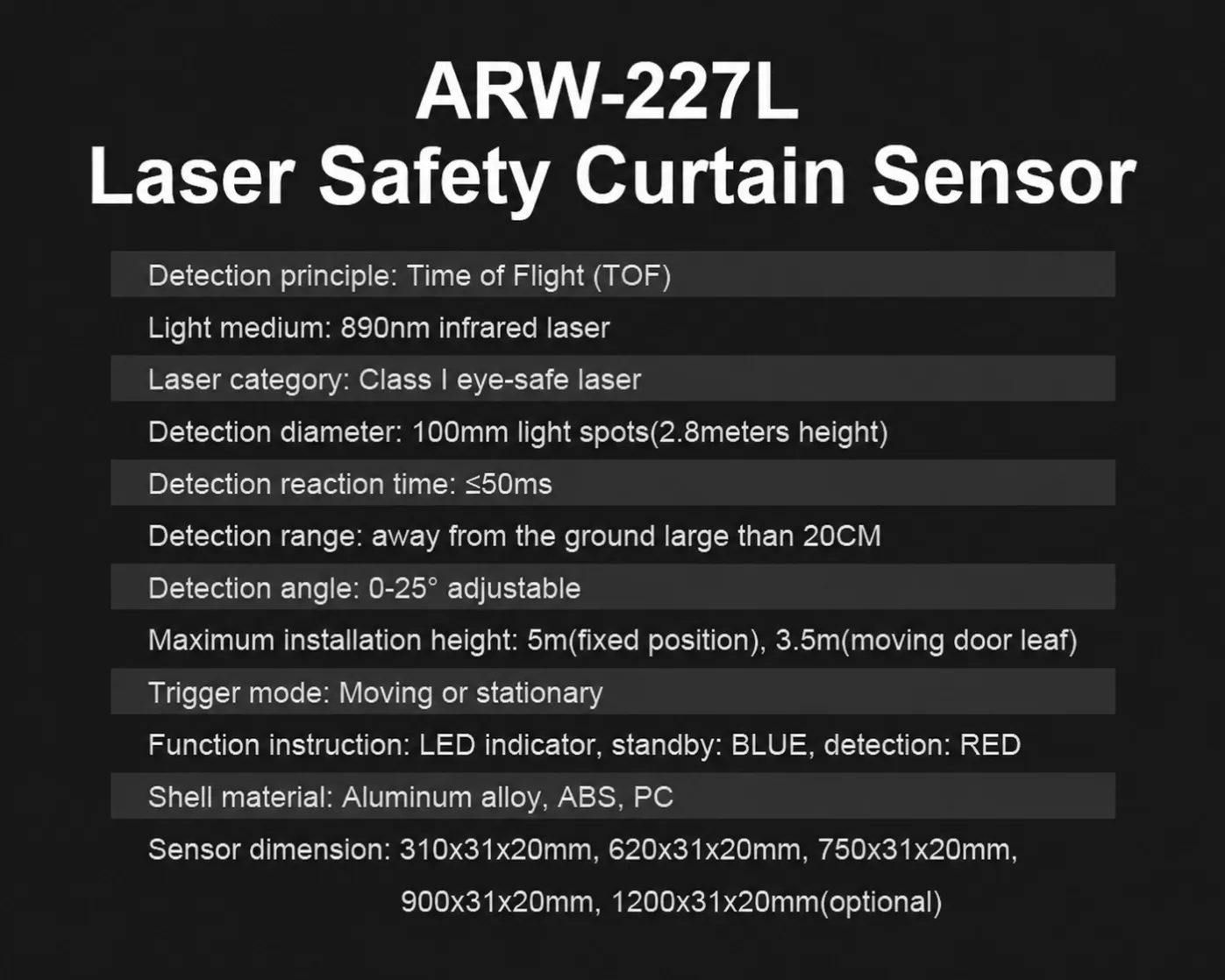

Specifications
- Input voltage
- DC12-36V
- Action current
- 158mA
- Static current
- 82mA
- Scanning range
- 500-2800mm adjustable
- Detection area
- about 75mm spot
- Response time
- ≤100ms
- Power consumption
- <100mA
- Light curtain type
- Infrared
- Operating mode
- Moving or resting mode adaptive
- Function indicator
- LED
- External dimension
- 620(L)x31(W)x20(H)mm(227B)

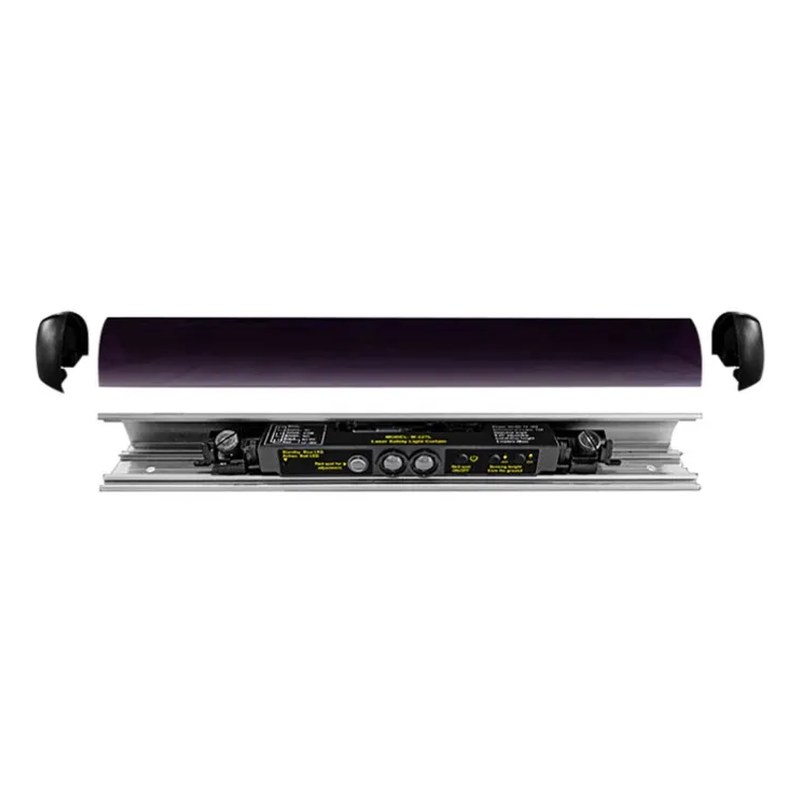

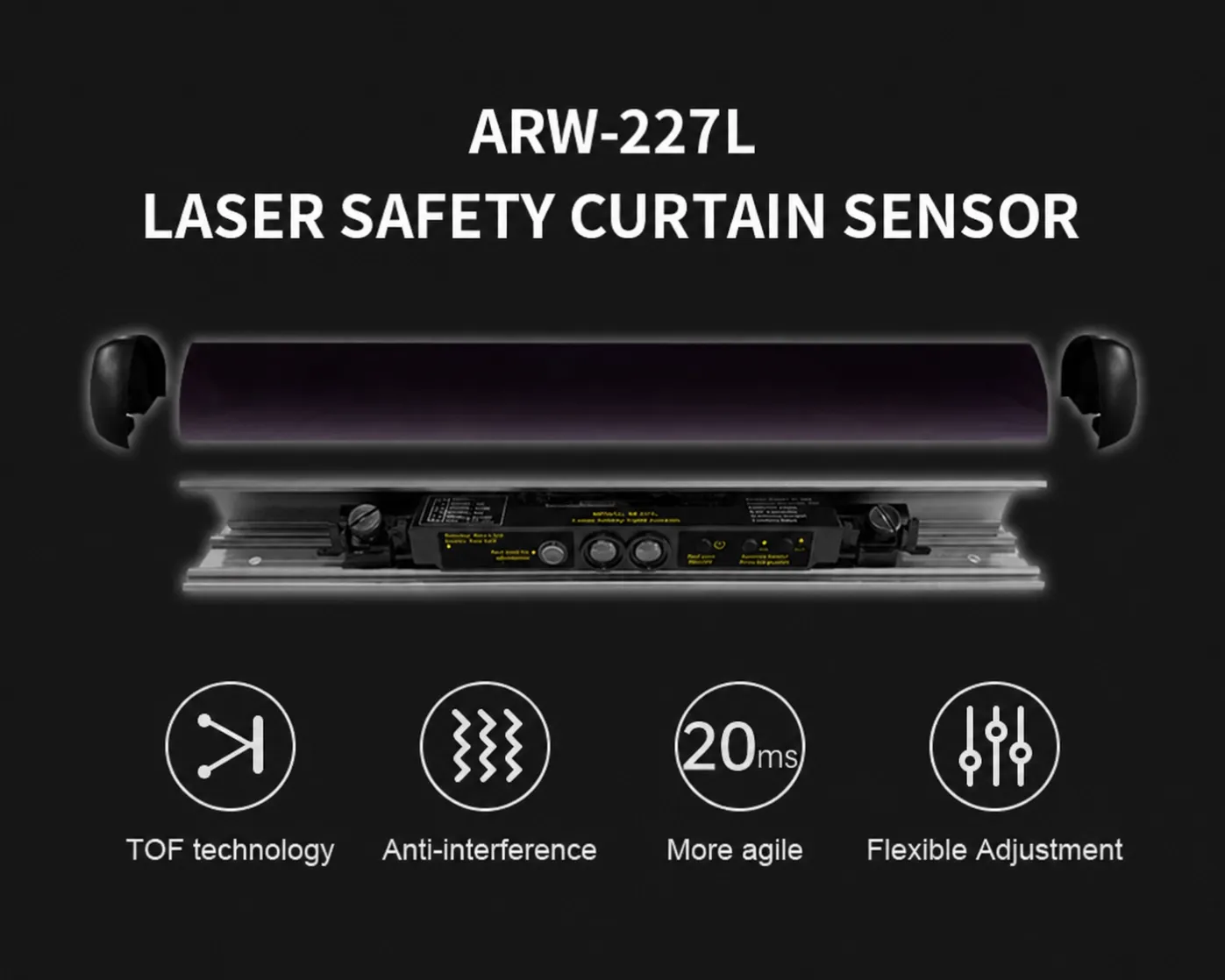

Motion/Rotation Door Top Scan
MOTION/ROTATION DO ARW-227 Can accurately detect the moving or fixed human body and objects, avoid all kinds of rotating automatic sensing door or swing door from colliding with body or objects, to ensure the safety of people and equipment, widely used in automatic revolving door safety presence occasions.
Exquisite structure, fashionable and simple appearance, easy to install.
Flexible adjustment of the detection height and sensing range by adjusting wheel and locking screw, fast and accurate.
The system with strong operating voltage stability, and has background noise filtering system, which is not affected by the environment (like sunshine, snow, rain etc.) The detection angle of scanning can be adjusted accurately by mounting a bracket.
