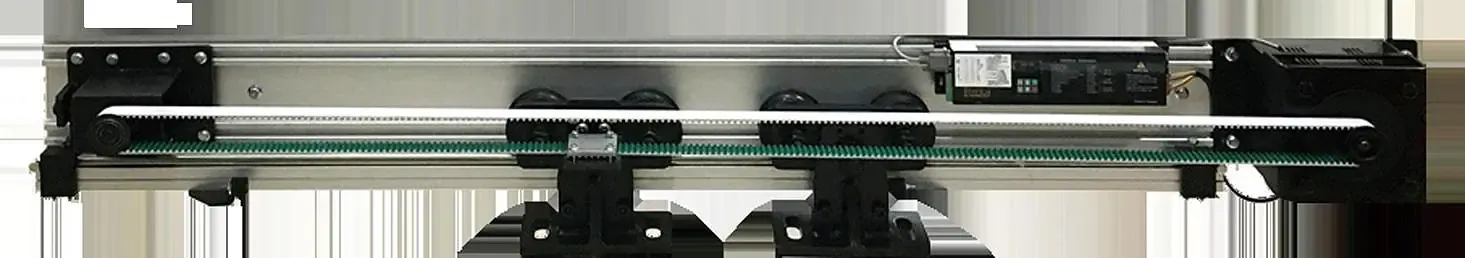

ARW-3000 Heavy-Duty Automatic Sliding Door Operator
The highest-capacity operator in the range, supporting a 3,000 kg single sliding door or a 4,000 kg bi-parting door for demanding heavy-door installations.
Specifications
- Single-leaf capacity
- 3,000 kg
- Bi-parting capacity
- 4,000 kg
- Motor
- AC permanent-magnet synchronous motor
- Speed range
- 0-180 rpm
- Rated power
- 150 W / 370 W
- Rated torque
- 10 N.m / 23 N.m
- Rated current
- 3.0 A
- Rated voltage
- 150 V
- Protection rating
- IP54
- Ambient temperature
- -25C to +50C
The ARW-3000 is the highest-capacity model shown in the brochure, supporting a 3,000 kg single sliding door or a 4,000 kg bi-parting door. It is intended for demanding heavy-door installations requiring high torque, industrial control and integrated protection.
Structural highlights
Zinc-treated A3 steel tail-wheel assembly with adjustable belt tension.
Hanger wheels made from nylon and 5 mm-thick A3 steel with zinc treatment.
Needle bearings with dust protection and double-bearing load support.
Oxidation-treated guide rail for corrosion and wear resistance.
High-strength low-noise synchronous belt for accurate transmission.
Brushless AC permanent-magnet synchronous motor with vector control.
PLC and inverter integrated industrial controller with one-button learning.
Control and safety features
Industrial PLC and inverter integrated controller for stable operation and resistance to electrical interference.
Integrated interfaces for sensors, drive commands and other signal switches.
High-precision magnetic encoder for smoother multi-stage speed control.
One-button door-width learning for easier commissioning.
Adjustable opening and closing behaviour for project-specific operation.
Overcurrent, overvoltage, overspeed and locked-rotor protection.
Obstruction response with rebound function and adjustable anti-pinch force.
Described in the brochure as reliability tested for more than 500,000 operating cycles.
Technical data
Motor type: sine-wave vector-control permanent-magnet synchronous motor.
Controller rated output voltage: three-phase 0-230 VAC, with overload capacity of 150% of rated output current for one minute.
Input power: single-phase 200-230 VAC, 50/60 Hz, with permitted voltage fluctuation of -15% to +10% and frequency fluctuation of +/-5%.
Continuous operation above 165 VAC; 15 ms tolerance below 165 VAC.
Speed range 0-180 rpm with digital display and 1 rpm resolution.
Protection rating IP54, ambient temperature -25C to +50C.
Information required for selection
Please provide: single-leaf or bi-parting configuration; door-leaf weight and dimensions; clear opening width and required travel distance; door material, guide system and estimated running resistance; opening frequency and duty cycle; available input voltage; required activation devices, safety sensors and access-control interfaces; and installation drawings and available header space.
For project support and model selection, contact NINGBO AURWEN INDUSTRIES CO., LTD.
