ARW-500 Swing Door Operator
Heavy-duty automatic swing door operator for hinged doors up to 500 kg, with a 24 V DC drive motor, 610 x 128 x 88 mm housing, adjustable 3-7 s opening and closing times, 0.5-30 s hold-open time and push-arm or pull-arm configurations.
Specifications
- Brand
- AURWEN
- Model
- ARW-500
- Product type
- Automatic swing door operator
- Power supply
- 220 VAC +/-10%, 50/60 Hz
- Maximum power consumption
- 100 W
- Drive unit
- 24 V DC motor
- Anti-pinch protection
- Standard
- Opening angle
- 80-100 degrees
- Opening time
- Adjustable, 3-7 s
- Closing time
- Adjustable, 3-7 s
- Hold-open time
- Adjustable, 0.5-30 s
- Drive-arm options
- Pull arm or push arm
- Ambient temperature
- -20C to +50C
- Relative humidity
- 85% or less
- Operator dimensions
- 610 x 128 x 88 mm
The AURWEN ARW-500 is a heavy-duty automatic swing door operator designed for demanding hinged-door applications. Its compact 610 mm operator housing, 24 V DC drive motor and selectable push or pull arm make it suitable for a broad range of commercial and specialist entrances.
Key benefits
Heavy-duty performance: supports door weights up to 500 kg, depending on door width.
Flexible installation: compatible with both pull-arm and push-arm configurations.
Adjustable movement: opening and closing times can be set from 3 to 7 seconds.
Adjustable hold-open time, configurable from 0.5 to 30 seconds.
Built-in anti-pinch protection as a standard safety function for controlled door movement.
Wide opening angle, adjustable from 80 to 100 degrees.
Low-voltage drive powered by a 24 V DC motor.
Compact housing measuring only 610 x 128 x 88 mm.
Compact operator dimensions

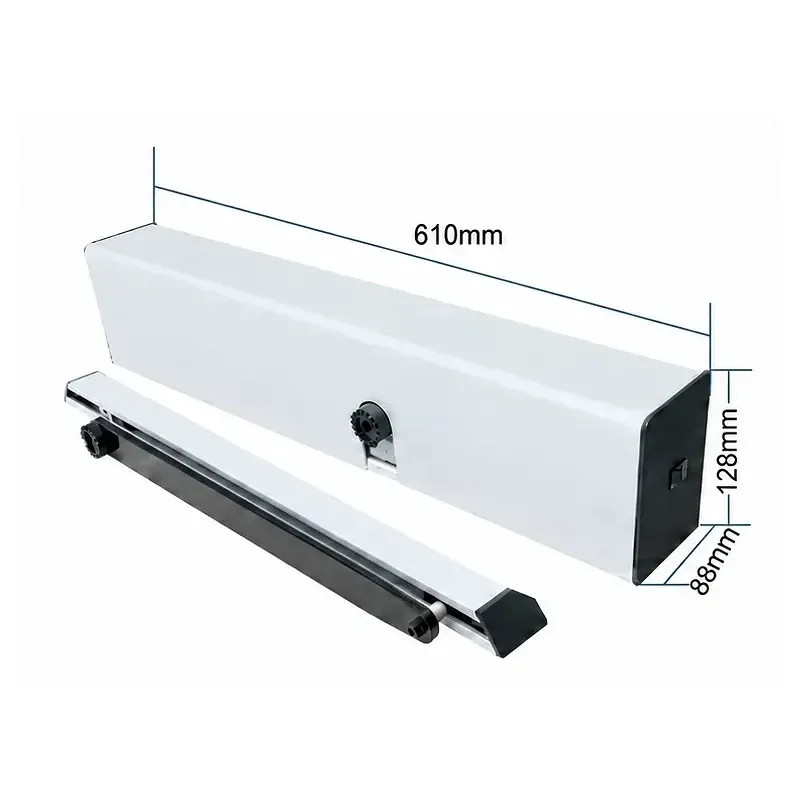

The ARW-500 operator measures 610 mm long, 128 mm high and 88 mm deep, providing heavy-duty performance in a streamlined surface-mounted housing.
Door weight and width selection

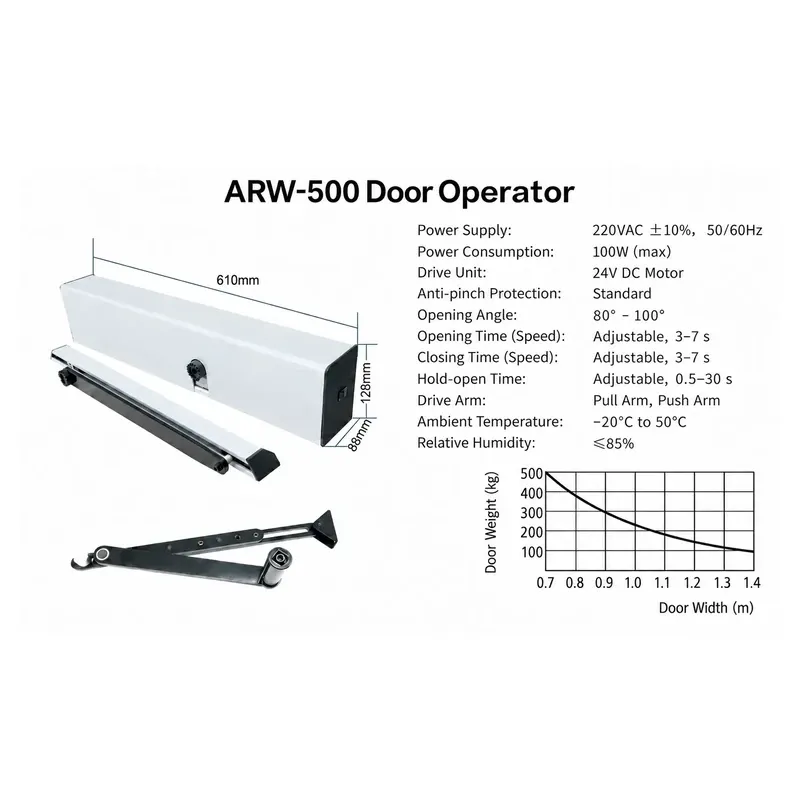

The maximum supported door weight decreases as the door leaf becomes wider. As a preliminary selection guide based on the supplied performance curve, a 0.7 m door corresponds to approximately 500 kg, 0.8 m to 400 kg, 0.9 m to 300 kg, 1.0 m to 230 kg, 1.1 m to 185 kg, 1.2 m to 145 kg, 1.3 m to 120 kg and 1.4 m to 100 kg.
These values are approximate readings from the product performance curve. Final suitability must be confirmed according to the actual door size, weight, hinge condition, wind pressure, opening direction and installation environment.
Push-arm and pull-arm options
The ARW-500 can be configured with either a push arm or a pull arm to match the door opening direction and mounting position.
The pull arm is typically selected when the operator is installed on the pull side of the door. It provides a clean appearance and suits mounting geometry where the arm can pull the door leaf open.

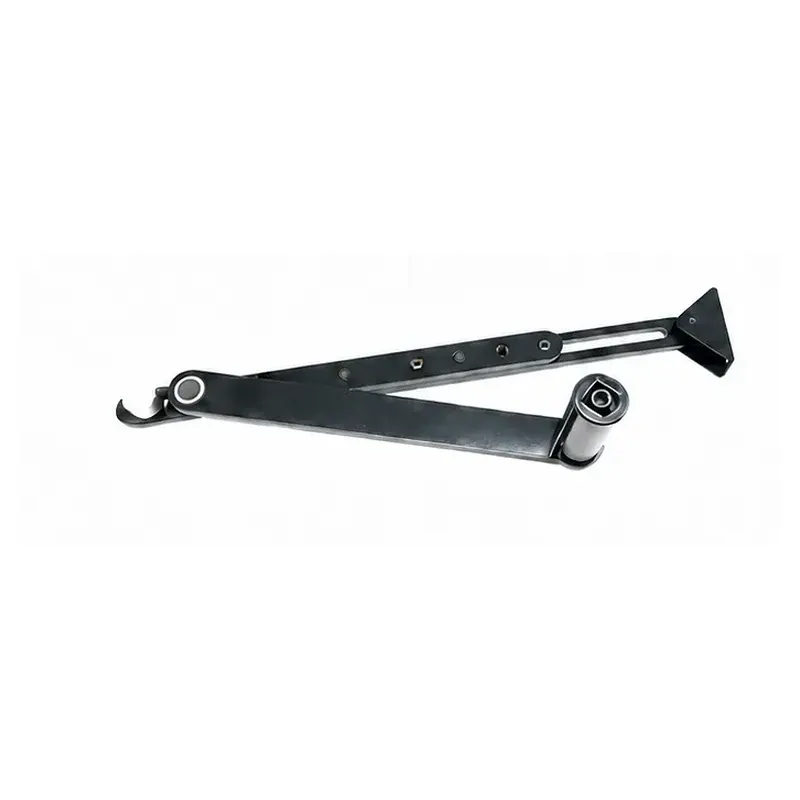

The push arm is typically selected when the operator is installed on the push side of the door. Its articulated structure accommodates the required pushing movement and installation offset.
Recommended applications
Commercial and public-building entrances; hospital and healthcare doors; industrial access doors; heavy security doors; large aluminium, steel or timber doors; controlled-access entrances; and accessible entrance upgrades.
Control and access options
The operator can be integrated into an automatic entrance solution using project-specific activation and access-control devices, such as microwave or infrared activation sensors, push buttons and touchless switches, remote controls, keypads, card readers or biometric terminals, access-control systems and safety sensors.
Compatibility and wiring requirements should be confirmed before ordering.
Information required for selection
Please provide: door-leaf width, height and weight; door material and frame construction; opening direction and installation side; push-arm or pull-arm requirement; door and hinge condition; required opening angle; daily operating frequency; required activation and access-control devices; indoor or outdoor installation environment; and photos or drawings of the doorway.
Final configuration and project suitability must be confirmed against the latest approved AURWEN technical data before purchase or installation.
For project support, contact NINGBO AURWEN INDUSTRIES CO., LTD.
