Automatic Door Switch
ARW-508 NARROW WIRELESS INFRARED TOUCHLESS SWITCH
NARROW WIRELESS I TOUCHLESS SWITCH ARW-508 Relay signal output, can be used with automatic door access controller. (M-508D can be available,
Specifications
- Power supply
- DC 12-30V
- Static current
- 34mA
- Action current
- 62mA (DC 12V power)
- Main contact capacity
- 1A 24V DC
- External dimension
- 110mm(L)×30mm(W)×15mm(H)
- Power supply
- 3V (2pcs 1.5V AA battery )
- Static current
- ≤80μA
- Battery life
- 300 times everyday, 250 days
- Emission current
- 10 mA
- Infrared scaning interval
- 100ms
- Response time
- ≤130ms
- Launch distance
- more than 30 meters
- Working temperature
- -42℃~45℃
- Working humidity
- 10~90%RH
- External dimension
- 121mm(L)×51mm(W)×45.5mm(H)

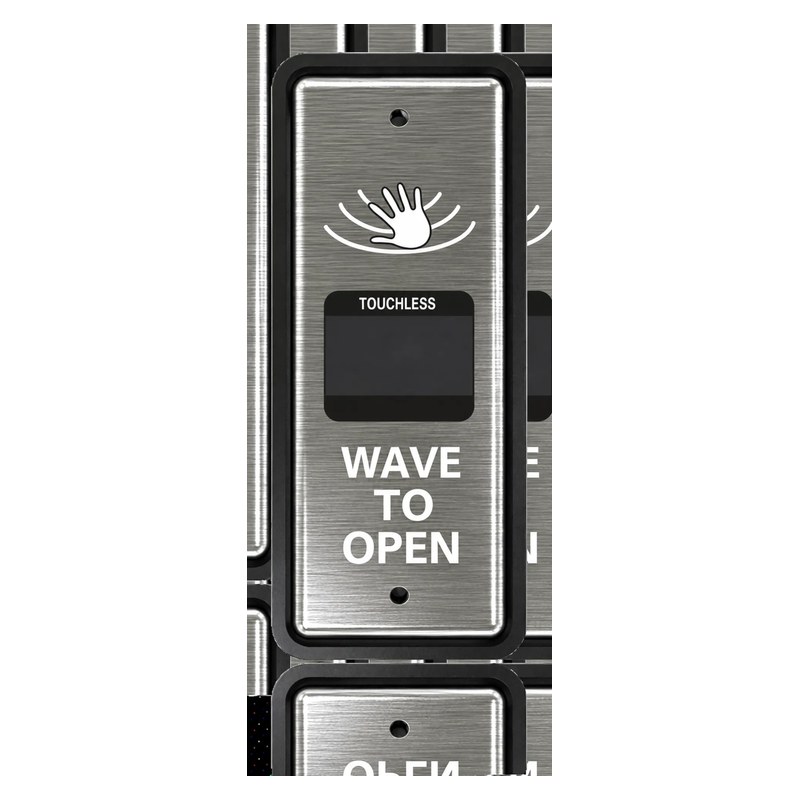

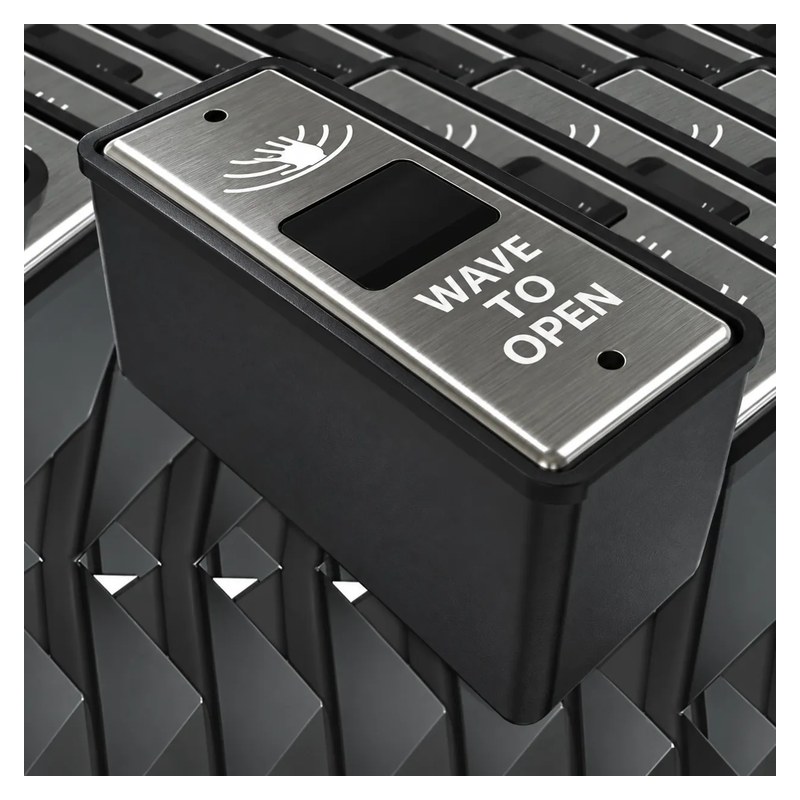

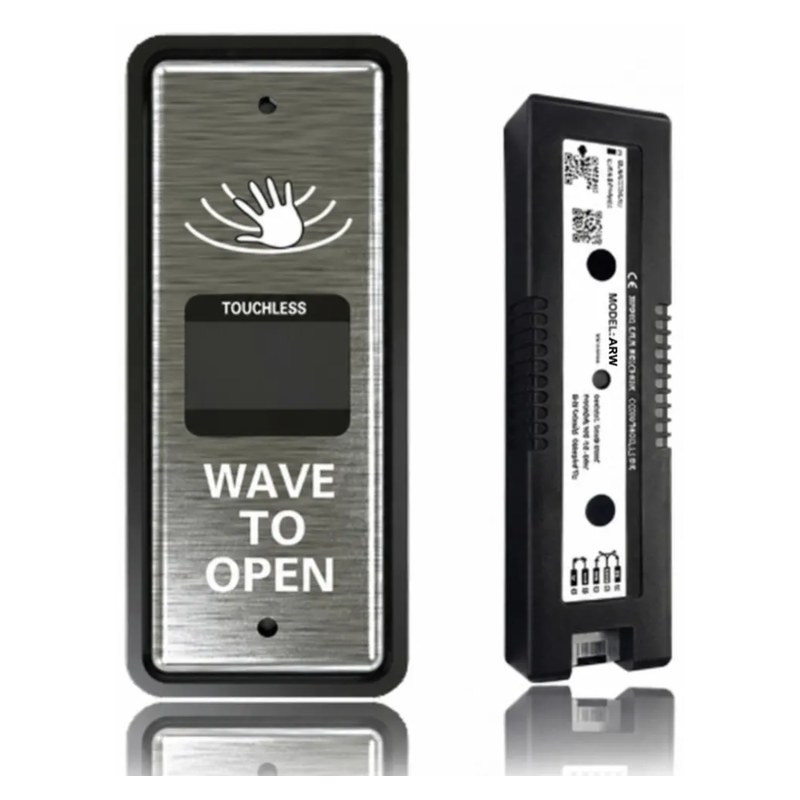

Narrow Wireless Infrared Touchless Switch
NARROW WIRELESS I TOUCHLESS SWITCH ARW-508 Relay signal output, can be used with automatic door access controller.

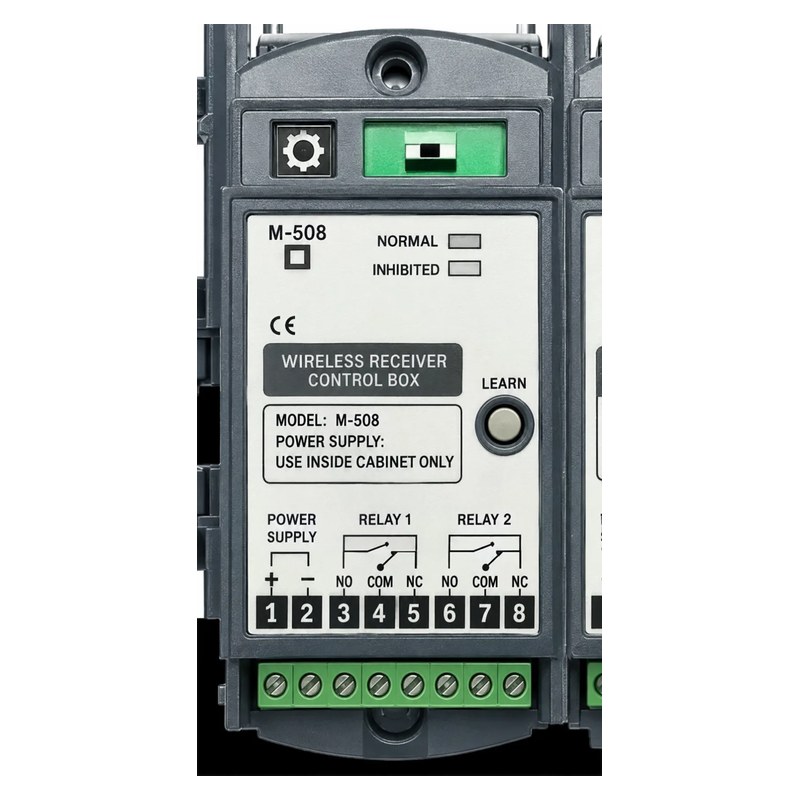

(M-508D can be available, with 602FD controller.) The induction fuction adopt infrared modulate and demodulate, not easy to be misjudged by interference.
Replace the traditional mechanical touch switch, non- contact sensing on the front of the hand, clean and hygienic.
The induction distance is from 3-30cm adjustable, can be adjusted for different occasion.
High sensitivity infrared tubes, quick response.
Wireless transmitter adopt 2.4G wireless communication technology, good frequency consistence, high wireless transceiver stability.
Low power consumption panel design, long battery life.
After receiving the signal, the door opening signal is output for 1.5 seconds.
The receiver with wide voltage input design, DC 12-30V power supply input.
Waterproof & dustproof , level : IP
