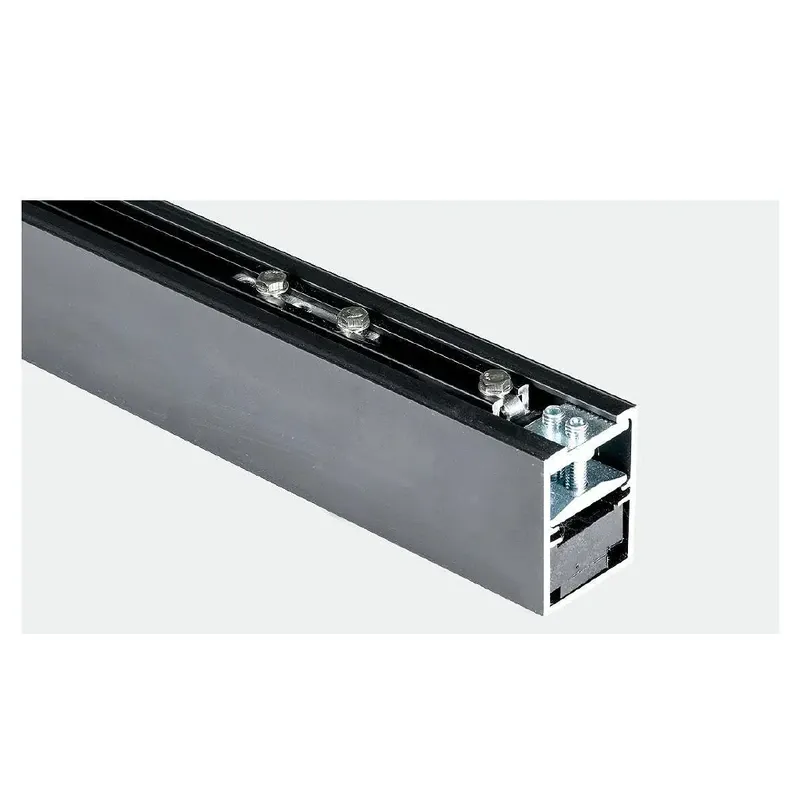

Extraordinary F-40 Magnetic Levitation Door Operator
Higher-capacity integrated magnetic levitation operator for 100 to 250 kg doors, 63.3 mm high x 47.6 mm wide.
Specifications
- Operator length
- 1,000-12,000 mm, customised
- Operator size
- 63.3 mm high x 47.6 mm wide
- Door-leaf mass
- 100-250 kg
- Opening range
- 500-3,000 mm
- Opening / closing speed
- 0.2-0.5 m/s
- Hold-open time
- 0-30 s
- Rated power
- 120 W; reinforced version 300 W
- Average return power
- 30 W
- Operating temperature
- -40C to +60C
- Obstruction force
- 10 N or less
- Manual opening force
- Less than 10 N
The Extraordinary F-40 is the higher-capacity integrated operator in the Extraordinary family, rated for 100-250 kg door leaves.
It keeps the slim 47.6 mm width of the family while increasing the door-leaf mass range for heavier architectural sliding doors.
Operating functions
Automatic, jog/inching, manual, one-way and locking modes.
Adjustable opening and closing speeds, braking distances and hold-open time.
Normally open and automatic full-open functions.
Automatic memory and push-to-open operation.
Obstruction reversal, overload protection and over-temperature alarm.
Centralised control capability and smartphone Bluetooth app support.
Standard configuration
Aluminium rail, drive unit, Bluetooth module, power system, aluminium moving rail, hanger assembly, load-bearing wheels, high-performance magnet and main control unit.
Hardware options
Available hardware for this operator includes glass hangers, stoppers, wooden-door hangers, floor-door connectors, electric locks, quick-install hangers and pulley assemblies. Selection depends on the door material, leaf construction and whether the door is framed, frameless or timber.
Activation and access-control options
Activation and access-control devices available for this operator include touch switches, remote controllers, miniature sensors and short-range presence sensors, round wireless switches, long-range presence sensors, wireless press switches and fingerprint terminals.
The required combination of activation and access-control devices is confirmed against the project configuration. Please state the intended devices, wiring route and power supply when requesting a quotation.
Information required for selection
Please provide: door type and material; number of door leaves and leaf weight; clear opening width and travel distance; required operator length and available installation space; surface-mounted or concealed installation; required activation devices and access-control interfaces; and power supply, usage frequency and environmental conditions.
Final capacity, dimensions, functions and component selection must be confirmed against the project drawing, door construction and the latest approved AURWEN technical data before ordering or installation.
