LV801 IMAGE RECOGNITION SENSOR
IMAGE RECOGNITION S LV801 AI human figure intelligent detection is suitable for all kinds of automatic doors as motion sensor, or safety pre
Specifications
- Main processor
- INGENIC T31N
- Main frequency
- 1.5GHz
- Detection mode
- Moving + human figure detection (Dual mode)
- Pixel
- HD 720P 1296*732
- Response speed
- 50ms
- Monitor storage
- TF card in FAT32 format, maximum 128GB memory
- View adjustment
- 0-90° (expose installation) 0-45°(embedded installation)
- Network distance
- 10-30 meters (dependin on the strength of Wi-Fi on site)
- Detection function
- human figure motion, presence, remote control opening,
- Signal output
- Relay ON/CN
- Power supply
- AC/DC 12-30V
- Standby comsumption
- 135mA(DC 12V power)
- Working current
- 175mA(DC 12V power)
- Installation methods
- Expose or embedded installation on the door head, wall,
- External dimension

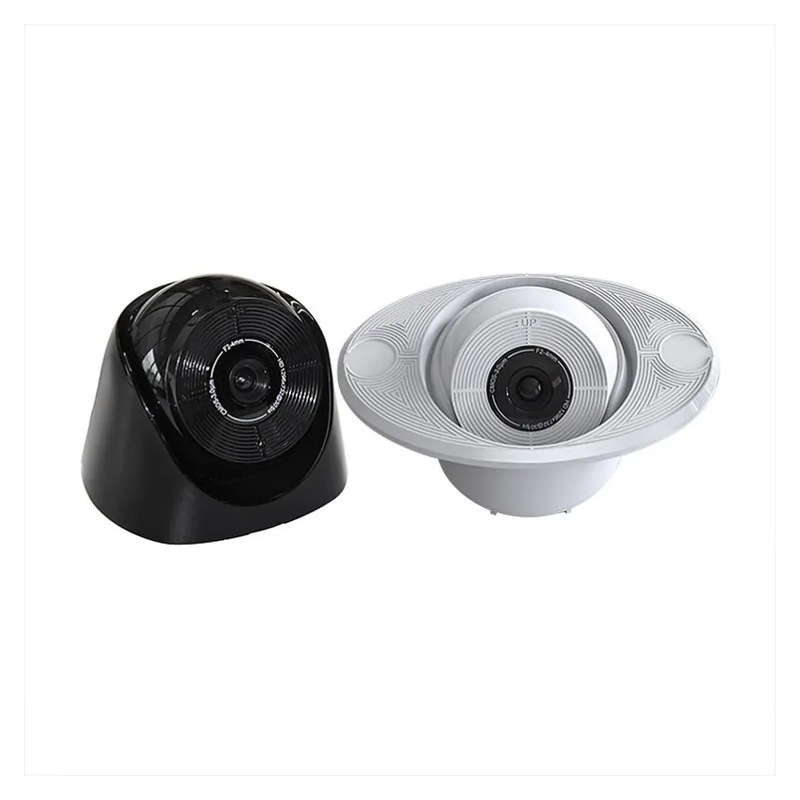

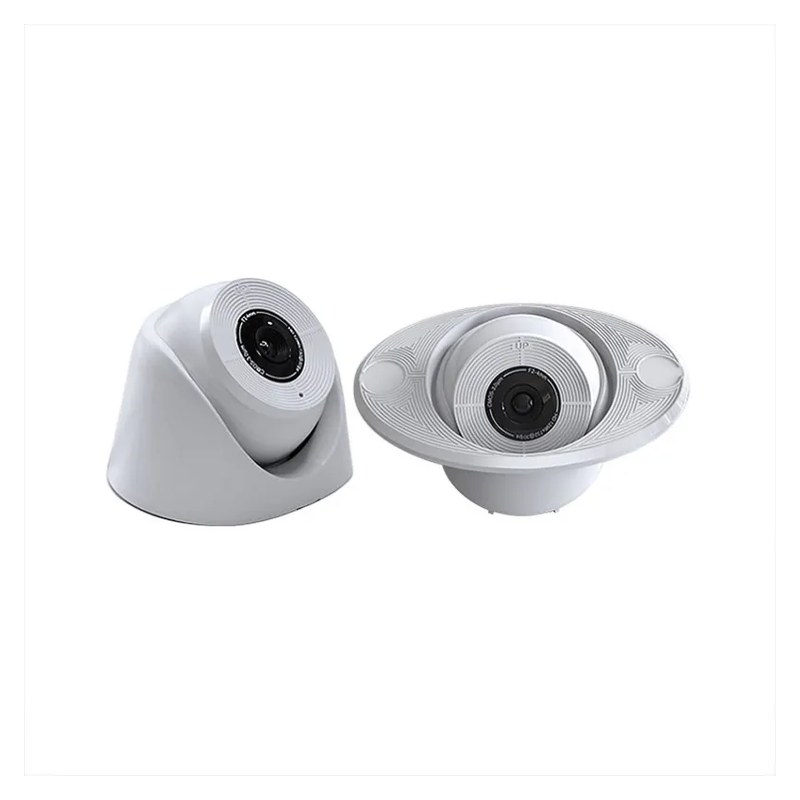

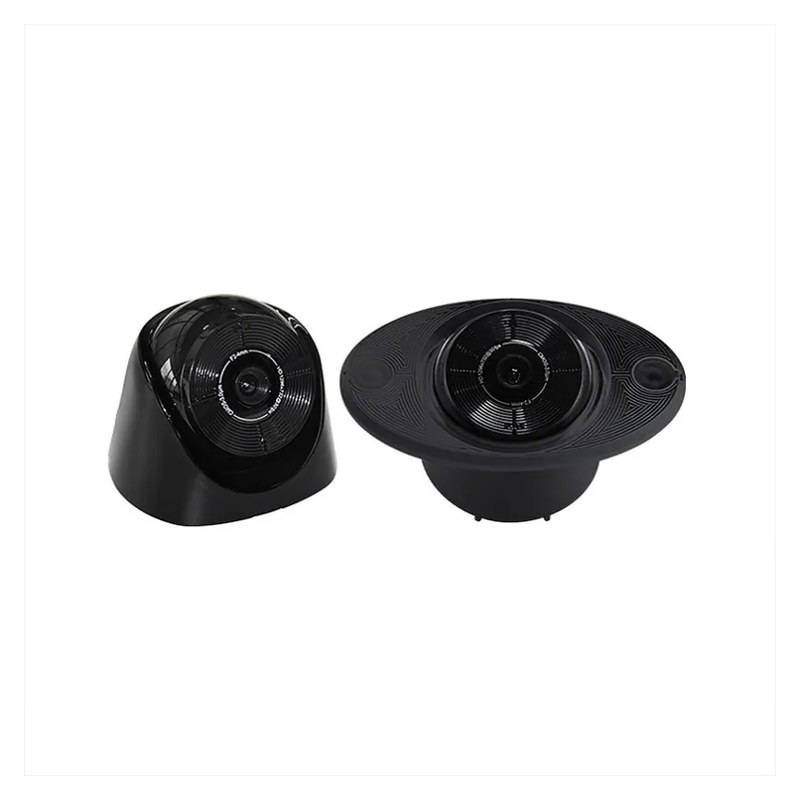

- 86x69x80mm(expose) 130x82x71mm(embedded)
- Installation height
- ≤ 6 meters (It can be installed higher if the installation
Image Recognition Sensor
IMAGE RECOGNITION S LV801 AI human figure intelligent detection is suitable for all kinds of automatic doors as motion sensor, or safety presence sensor.
AI human figure intelligent detection, only to the range of the human figure to make a judgment.
Whether in the moving or stationary state, it can outout signals.
Due to use the video stream image acquisition, on the basis of ensure a certain angle of view, the sensing detection of ultra-high door can be realized, and the maximum installation height can be 6 meters.
Choose the TUYA platform, the live vedio can be clearly presented on the mobile phone, and remote monitoring by the mobile can be realized.
