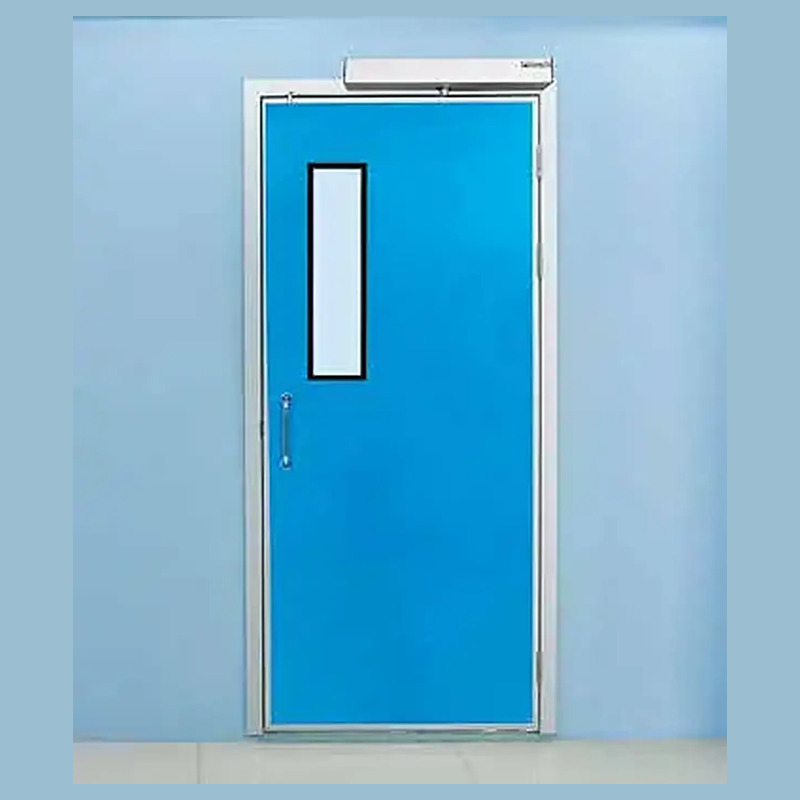

MBS-YP01 Automatic Single Swing Door
Automatic single-leaf swing door for patient rooms and utility areas, with configurable frame styles, anti-collision strip and option for locks, closers and access control.
Specifications
- Model
- MBS-YP01
- Reserved opening
- 900 x 2100 mm
- Configurable width
- W 600-1200 mm
- Configurable height
- H 1900-2200 mm
- Door color
- Matte light sky blue
- Anti-collision strip
- 150 mm (200 mm option)
- Suitable wall thickness
- >= 100 mm
- Edging
- Aluminum profile (stainless-steel option)
- Observation window
- 180 x 700 mm, black-edged flat glass
- Opening direction
- Left or right, viewed from outside
Automatic single-swing configuration for patient rooms, utility rooms, auxiliary spaces and offices.
Multiple frame styles support different wall thicknesses, while optional locks, closers, floor springs and access-control devices allow the assembly to be configured for the project.
Applications
Accessible patient-room and corridor entrances.
Configuration options
The hospital door range is supplied with a choice of edging: aluminum profile or stainless steel, selected per project.
Observation windows are available as black-edged flat glass in a range of sizes, including round and rectangular formats depending on the model.
Stainless-steel anti-collision strips can be specified where door edges take repeated trolley and bed traffic.
Door locks, closers, floor springs and access-control interfaces are available as project hardware, so the door leaf and the control hardware are specified together.
Activation and control options include infrared sensors, foot sensors, keypads and remote controls.
Recessed bottom sealing strips and fire seal strips are available on the models that support them.
Leaf handing can be left-hand, right-hand, single-leaf, double-leaf or unequal-leaf to suit the opening.
Non-standard dimensions and project-specific detailing are available on request.
Specification and ordering notes
For accurate selection, provide the clear opening width and height, finished wall thickness, opening direction, door-leaf arrangement, required observation window, preferred finish, hardware schedule, activation method and any airtightness, fire or radiation-shielding requirements.
Final technical details should be verified against the approved project drawings before manufacture. Dimensions and options vary by model, so request a project-specific confirmation before ordering.
