Helthcare Doors

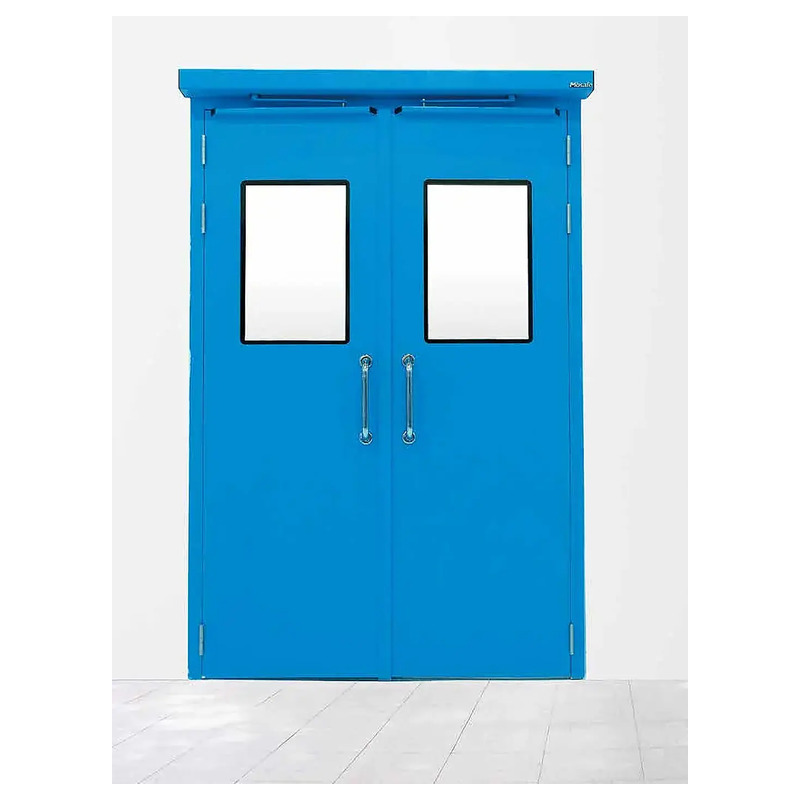

MBS-YP02 Automatic Double Swing Door
Automatic double-leaf swing door for hospital patient rooms and auxiliary spaces, with configurable frame, anti-collision strip and project hardware.
Specifications
- Model
- MBS-YP02
- Reserved opening
- 900 x 2100 mm
- Configurable width
- W 600-1200 mm per leaf
- Configurable height
- H 1900-2200 mm
- Door color
- Matte light sky blue
- Anti-collision strip
- 150 mm (200 mm option)
- Suitable wall thickness
- >= 100 mm
- Edging
- Aluminum profile (stainless-steel option)
- Observation window
- 180 x 700 mm, black-edged flat glass
Automatic double-swing configuration for patient rooms, utility rooms, auxiliary spaces and offices.
Optional locks, closers, floor springs and access-control devices allow the assembly to be configured for the project.
Applications
Wider patient-room and corridor entrances where two leaves are required.
Configuration options
The hospital door range is supplied with a choice of edging: aluminum profile or stainless steel, selected per project.
Observation windows are available as black-edged flat glass in a range of sizes, including round and rectangular formats depending on the model.
Stainless-steel anti-collision strips can be specified where door edges take repeated trolley and bed traffic.
Door locks, closers, floor springs and access-control interfaces are available as project hardware, so the door leaf and the control hardware are specified together.
Activation and control options include infrared sensors, foot sensors, keypads and remote controls.
Recessed bottom sealing strips and fire seal strips are available on the models that support them.
Leaf handing can be left-hand, right-hand, single-leaf, double-leaf or unequal-leaf to suit the opening.
Non-standard dimensions and project-specific detailing are available on request.
Specification and ordering notes
For accurate selection, provide the clear opening width and height, finished wall thickness, opening direction, door-leaf arrangement, required observation window, preferred finish, hardware schedule, activation method and any airtightness, fire or radiation-shielding requirements.
Final technical details should be verified against the approved project drawings before manufacture. Dimensions and options vary by model, so request a project-specific confirmation before ordering.
