Helthcare Doors

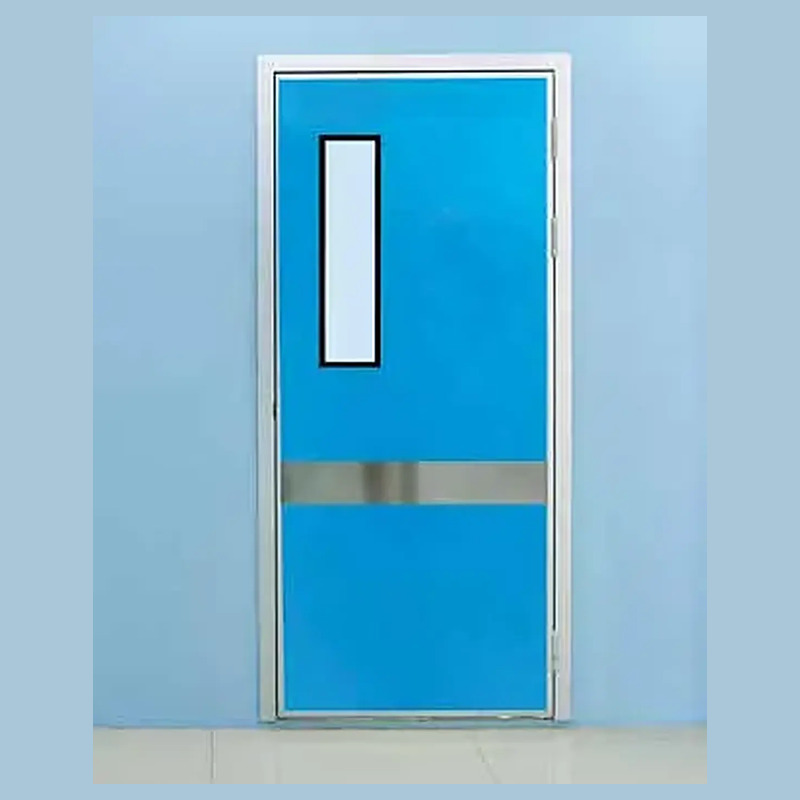

MBS-YP03 Manual 180 Degree Single Door
Manual single-leaf hospital door opening through a wide 180 degree arc, with reinforced galvanized-steel panels and aluminum-profile edging.
Specifications
- Model
- MBS-YP03
- Opening angle
- 180 degrees
- Leaf arrangement
- Single
- Panel
- Reinforced galvanized steel
- Edging
- Aluminum profile
- Options
- Vision panel, lock, sealing accessories
These doors open in both directions through a wide 180 degree arc, helping improve movement of beds and equipment through busy clinical areas.
The range uses reinforced galvanized-steel panels, aluminum-profile edging and optional vision panels, locks and sealing accessories.
Applications
Wide-opening patient and equipment routes.
Configuration options
The hospital door range is supplied with a choice of edging: aluminum profile or stainless steel, selected per project.
Observation windows are available as black-edged flat glass in a range of sizes, including round and rectangular formats depending on the model.
Stainless-steel anti-collision strips can be specified where door edges take repeated trolley and bed traffic.
Door locks, closers, floor springs and access-control interfaces are available as project hardware, so the door leaf and the control hardware are specified together.
Activation and control options include infrared sensors, foot sensors, keypads and remote controls.
Recessed bottom sealing strips and fire seal strips are available on the models that support them.
Leaf handing can be left-hand, right-hand, single-leaf, double-leaf or unequal-leaf to suit the opening.
Non-standard dimensions and project-specific detailing are available on request.
Specification and ordering notes
For accurate selection, provide the clear opening width and height, finished wall thickness, opening direction, door-leaf arrangement, required observation window, preferred finish, hardware schedule, activation method and any airtightness, fire or radiation-shielding requirements.
Final technical details should be verified against the approved project drawings before manufacture. Dimensions and options vary by model, so request a project-specific confirmation before ordering.
