Helthcare Doors

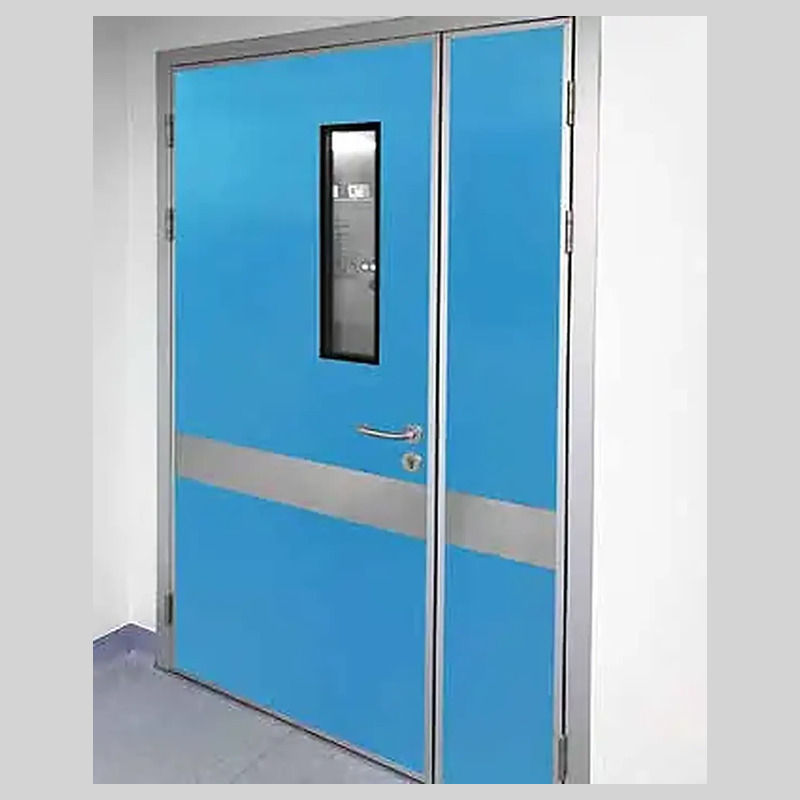

MBS-YP08 Unequal Double Leaf Hospital Door
Asymmetric double-leaf hospital door with a main daily-use leaf and a secondary leaf for occasional wider access.
Specifications
- Model
- MBS-YP08
- Reserved opening
- 1200 x 2100 mm
- Leaf arrangement
- Unequal double
- Anti-collision strip
- 150 mm
- Suitable wall thickness
- >= 100 mm
- Observation window
- Optional
An asymmetric double-leaf arrangement for openings that need a main daily-use leaf and a secondary leaf for occasional wider access.
The catalog standard reserved opening is 1200 x 2100 mm, with a 150 mm anti-collision strip, >= 100 mm wall compatibility and an optional observation window.
Applications
Openings requiring asymmetric leaves or special access.
Configuration options
The hospital door range is supplied with a choice of edging: aluminum profile or stainless steel, selected per project.
Observation windows are available as black-edged flat glass in a range of sizes, including round and rectangular formats depending on the model.
Stainless-steel anti-collision strips can be specified where door edges take repeated trolley and bed traffic.
Door locks, closers, floor springs and access-control interfaces are available as project hardware, so the door leaf and the control hardware are specified together.
Activation and control options include infrared sensors, foot sensors, keypads and remote controls.
Recessed bottom sealing strips and fire seal strips are available on the models that support them.
Leaf handing can be left-hand, right-hand, single-leaf, double-leaf or unequal-leaf to suit the opening.
Non-standard dimensions and project-specific detailing are available on request.
Specification and ordering notes
For accurate selection, provide the clear opening width and height, finished wall thickness, opening direction, door-leaf arrangement, required observation window, preferred finish, hardware schedule, activation method and any airtightness, fire or radiation-shielding requirements.
Final technical details should be verified against the approved project drawings before manufacture. Dimensions and options vary by model, so request a project-specific confirmation before ordering.
