Helthcare Doors

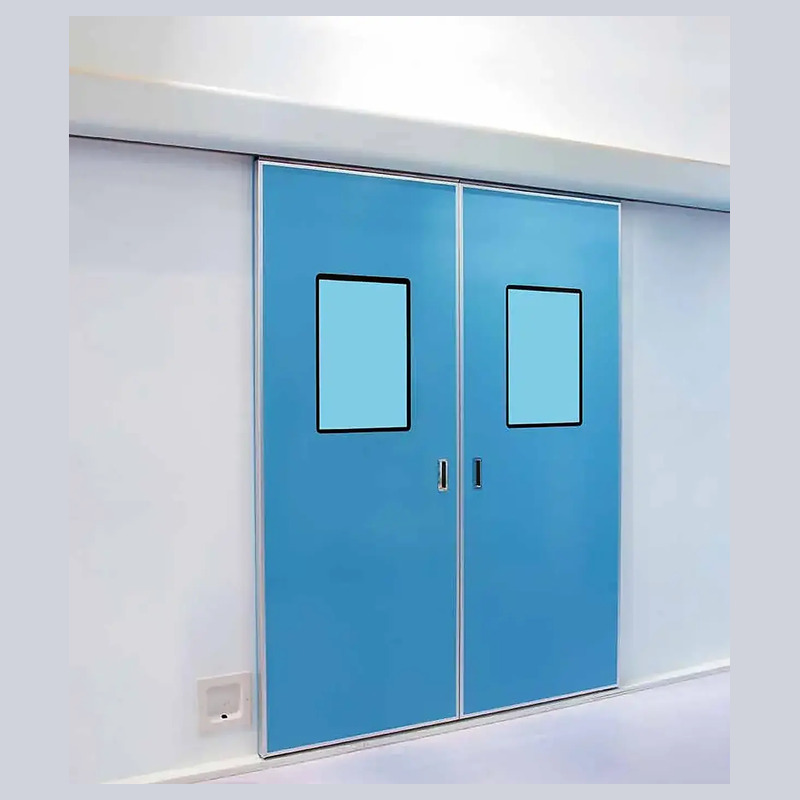

MBS-YT01A Automatic Hermetic Door
Automatic hermetic sliding door for operating rooms and laboratories, with a full-wrap frame, flush double-glazed observation window, integrated anti-collision strip and airtight sealing rated to GB/T 7106-2008 Grade 8.
Specifications
- Model
- MBS-YT01A
- Reserved opening
- 1400 x 2100 mm
- Configurable width
- W 900-1800 mm
- Configurable height
- H 1900-2400 mm
- Door color
- Matte light sky blue (project color available)
- Anti-collision strip
- 150 mm (200 mm option)
- Suitable wall thickness
- >= 50 mm
- Installation
- Plug-in (embedded option)
- Edge profile
- Stainless steel (aluminum option)
- Observation window
- 400 x 800 mm, R20, black-edged flat glass
- Airtightness
- GB/T 7106-2008 Grade 8
Designed for operating-room and laboratory entrances where controlled airflow, quiet movement and easy cleaning are important.
The door uses a full-wrap frame, a flush black-edged double-glazed observation window and an integrated anti-collision strip for a clean, cohesive appearance.
Key features
Proprietary sealing design; the catalog states compliance with GB/T 7106-2008, Grade 8 airtightness.
Smooth, quiet operation with sound-insulating construction.
Reduced manual opening force during a power outage.
Energy-conscious design intended to limit air circulation, drafts and dust transfer.
Optional motor configurations, including a German-brand brushed motor.
Custom design and non-standard dimensions available on request.
Applications
Operating rooms, clean areas and laboratories in hospitals and healthcare facilities, where airtightness and hygiene drive the specification.
Configuration options
The hospital door range is supplied with a choice of edging: aluminum profile or stainless steel, selected per project.
Observation windows are available as black-edged flat glass in a range of sizes, including round and rectangular formats depending on the model.
Stainless-steel anti-collision strips can be specified where door edges take repeated trolley and bed traffic.
Door locks, closers, floor springs and access-control interfaces are available as project hardware, so the door leaf and the control hardware are specified together.
Activation and control options include infrared sensors, foot sensors, keypads and remote controls.
Recessed bottom sealing strips and fire seal strips are available on the models that support them.
Leaf handing can be left-hand, right-hand, single-leaf, double-leaf or unequal-leaf to suit the opening.
Non-standard dimensions and project-specific detailing are available on request.
Specification and ordering notes
For accurate selection, provide the clear opening width and height, finished wall thickness, opening direction, door-leaf arrangement, required observation window, preferred finish, hardware schedule, activation method and any airtightness, fire or radiation-shielding requirements.
Final technical details should be verified against the approved project drawings before manufacture. Dimensions and options vary by model, so request a project-specific confirmation before ordering.
