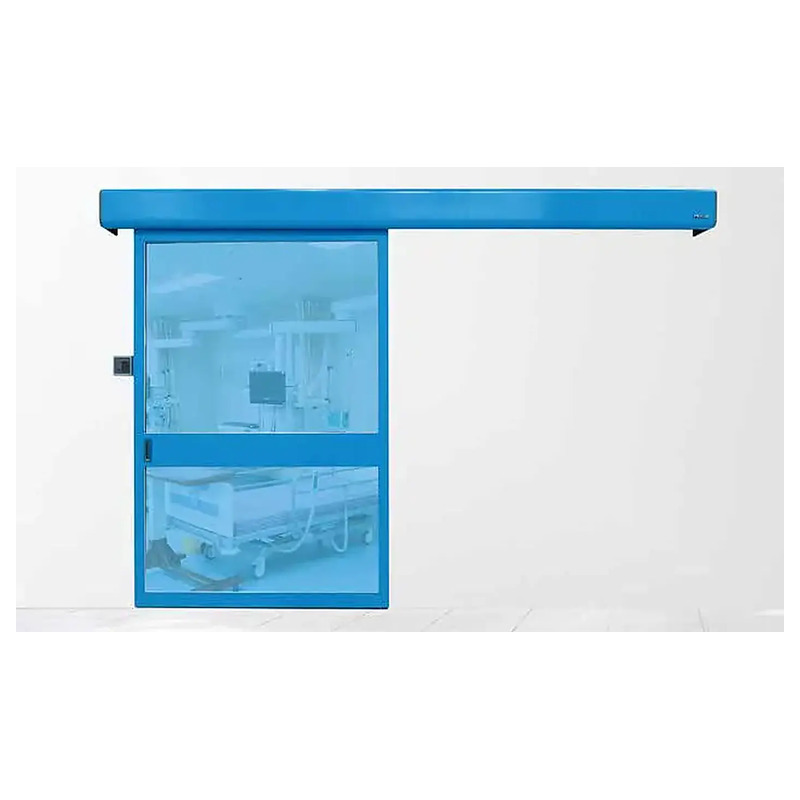

MBS-YT08 Toughened Glass Airtight Automatic Door
Aluminum-framed toughened-glass airtight automatic door for intensive care, premium wards and laboratory entrances.
Specifications
- Model
- MBS-YT08
- Standard reserved opening
- 1000 x 2100 mm
- Configurable width
- W 900-1600 mm
- Configurable height
- H 1900-2200 mm
- Door body
- Toughened glass
- Anti-collision strip
- 150 mm
- Suitable wall thickness
- >= 50 mm
- Installation
- Plug-in
- Edging
- Aluminum
Toughened-glass variant of the airtight automatic door, for the same quiet clinical environments.
Control options can include infrared activation, foot sensors and keypad access.
Applications
ICUs, premium wards and laboratories where full-glass appearance is preferred.
Configuration options
The hospital door range is supplied with a choice of edging: aluminum profile or stainless steel, selected per project.
Observation windows are available as black-edged flat glass in a range of sizes, including round and rectangular formats depending on the model.
Stainless-steel anti-collision strips can be specified where door edges take repeated trolley and bed traffic.
Door locks, closers, floor springs and access-control interfaces are available as project hardware, so the door leaf and the control hardware are specified together.
Activation and control options include infrared sensors, foot sensors, keypads and remote controls.
Recessed bottom sealing strips and fire seal strips are available on the models that support them.
Leaf handing can be left-hand, right-hand, single-leaf, double-leaf or unequal-leaf to suit the opening.
Non-standard dimensions and project-specific detailing are available on request.
Specification and ordering notes
For accurate selection, provide the clear opening width and height, finished wall thickness, opening direction, door-leaf arrangement, required observation window, preferred finish, hardware schedule, activation method and any airtightness, fire or radiation-shielding requirements.
Final technical details should be verified against the approved project drawings before manufacture. Dimensions and options vary by model, so request a project-specific confirmation before ordering.
