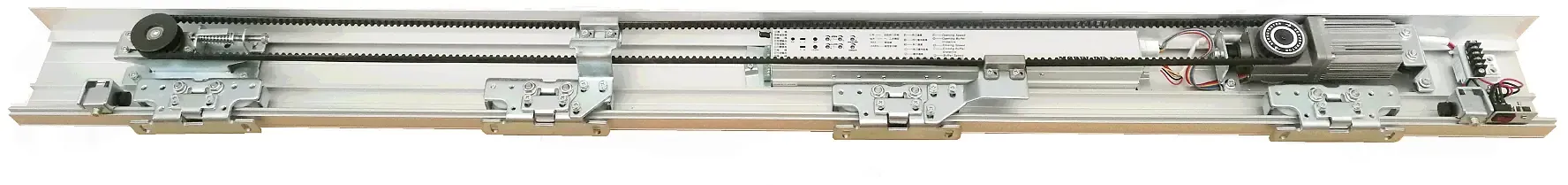

Model 150 Automatic Sliding Door Operator
Compact automatic sliding door operator for single- or two-leaf installations up to 150 kg per leaf, with a DC 24 V brushless motor, microprocessor controller and AC 110-280 V input.
Specifications
- Door-leaf capacity
- 150 kg x 1 leaf or 2 leaves
- Door opening width
- DW = 500-2800 mm
- Motor
- DC 24 V / 60 W brushless motor
- Controller
- Microprocessor controller
- Input power
- AC 110-280 V, 50-60 Hz
- Ambient temperature
- -20C to +50C
- Opening speed
- 450-750 mm/s
- Hold-open time
- Adjustable 0-20 s
- Opening mode
- Full opening / half opening
- Special arrangement
- Hanger can pass below the motor
The Model 150 is a compact automatic sliding door operator for single- or two-leaf installations. Its DC brushless motor and microprocessor controller provide adjustable operating speed, hold-open time and full-open or half-open modes.
Door opening width is configurable from 500 mm to 2800 mm, and opening speed is adjustable from 450 to 750 mm/s. Hold-open time can be set from 0 to 20 seconds.

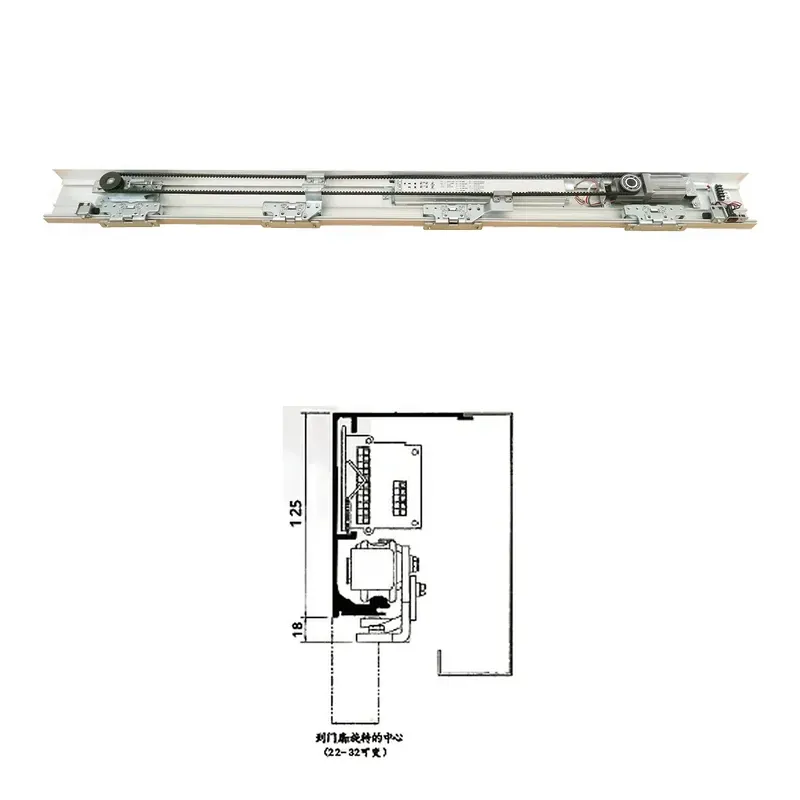

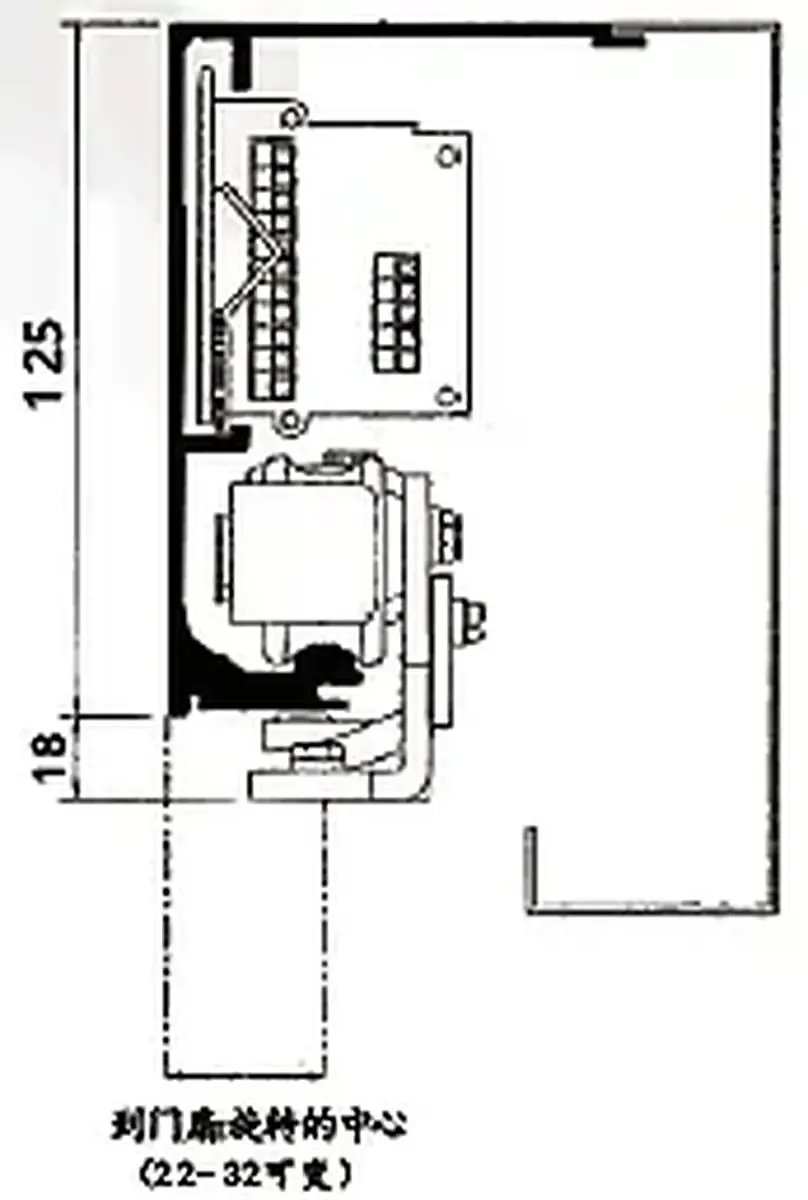

The hanger arrangement allows the door hanger to pass below the motor, which helps maximise the clear opening within a given track length.
Control and safety features
Industrial PLC and inverter integrated controller for stable operation and resistance to electrical interference.
Integrated interfaces for sensors, drive commands and other signal switches.
High-precision magnetic encoder for smoother multi-stage speed control.
One-button door-width learning for easier commissioning.
Adjustable opening and closing behaviour for project-specific operation.
Overcurrent, overvoltage, overspeed and locked-rotor protection.
Obstruction response with rebound function and adjustable anti-pinch force.
Described in the brochure as reliability tested for more than 500,000 operating cycles.
Information required for selection
Please provide: single-leaf or bi-parting configuration; door-leaf weight and dimensions; clear opening width and required travel distance; door material, guide system and estimated running resistance; opening frequency and duty cycle; available input voltage; required activation devices, safety sensors and access-control interfaces; and installation drawings and available header space.
