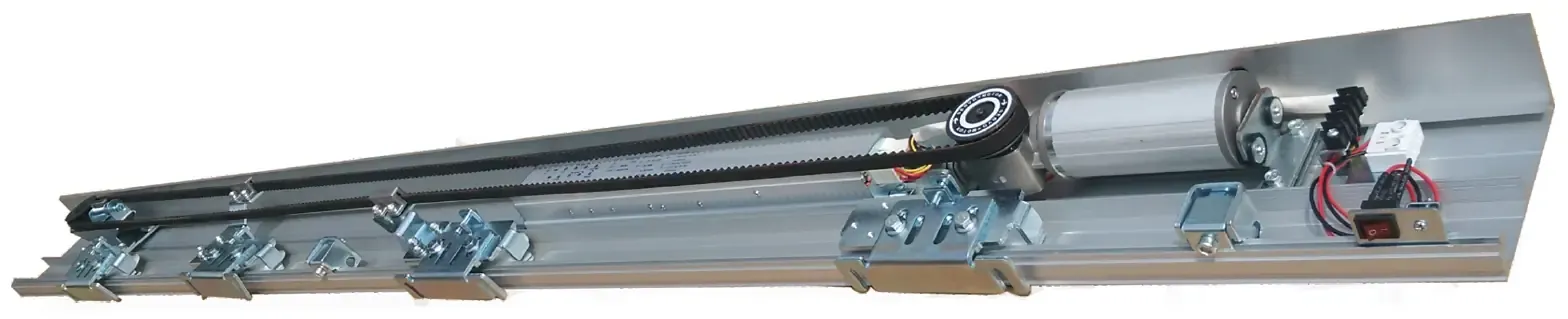

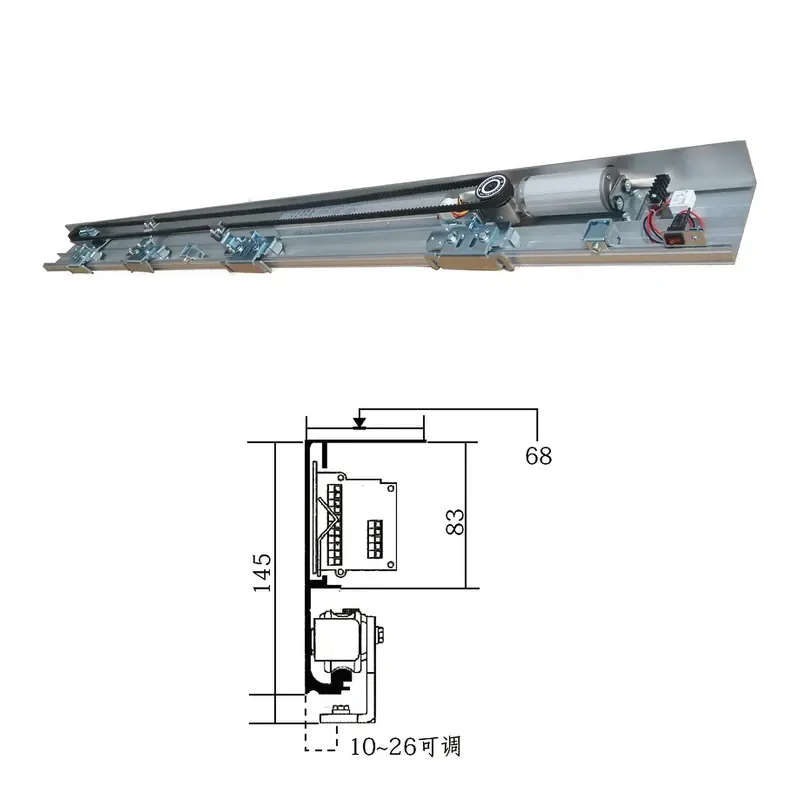

Model 200 Automatic Sliding Door Operator
Automatic sliding door operator rated to 200 kg per leaf for single- or two-leaf doors, with a DC 24 V 80 W brushless motor, microprocessor controller and AC 110-280 V input.
Specifications
- Door-leaf capacity
- 200 kg x 1 leaf or 2 leaves
- Door opening width
- DW = 500-2800 mm
- Motor
- DC 24 V / 80 W brushless motor
- Controller
- Microprocessor controller
- Input power
- AC 110-280 V, 50-60 Hz
- Ambient temperature
- -20C to +50C
- Opening speed
- 450-750 mm/s
- Hold-open time
- Adjustable 0-20 s
- Opening mode
- Full opening / half opening
- Special arrangement

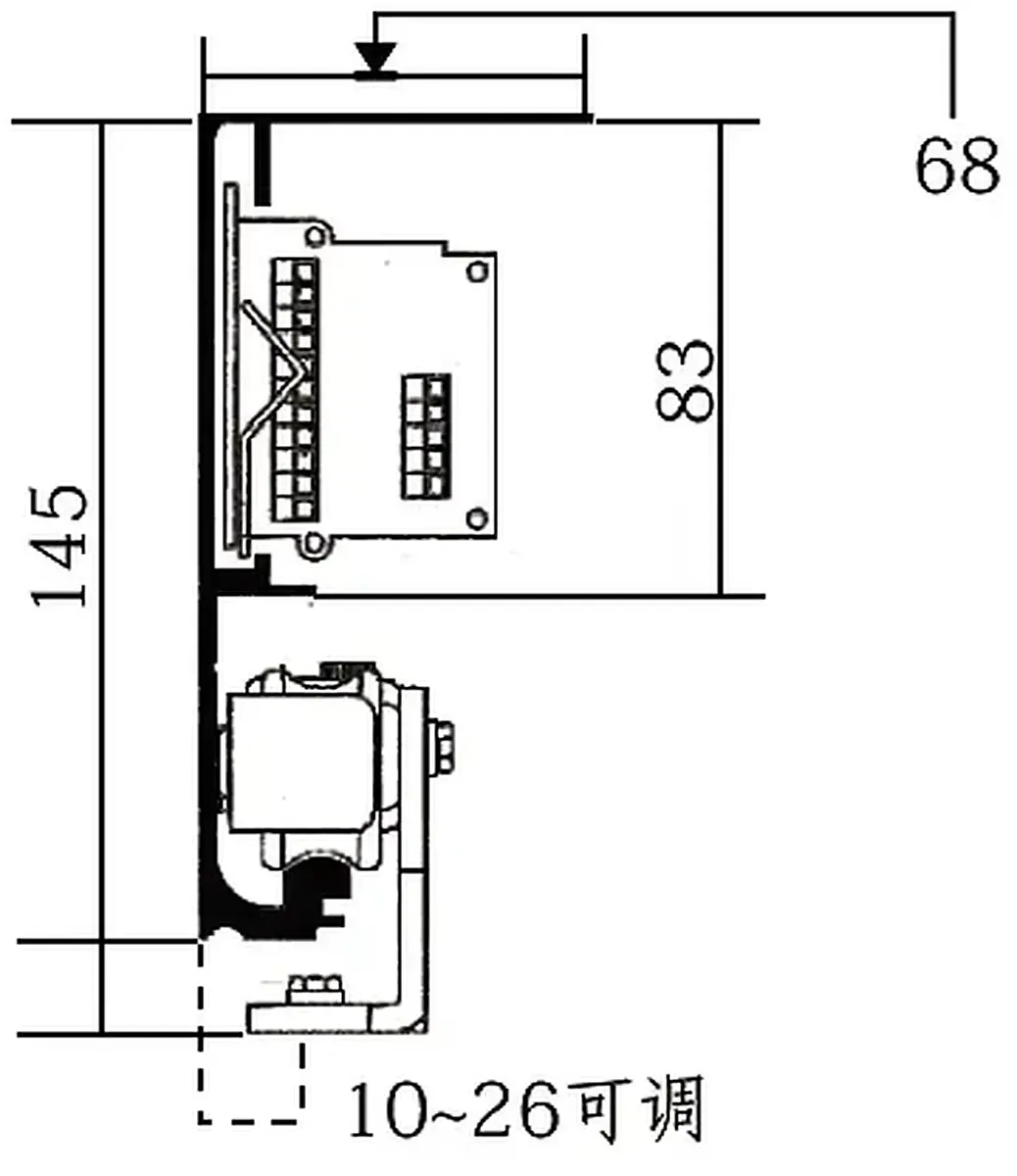

- Hanger can pass below the motor
The Model 200 increases the rated capacity to 200 kg per leaf while retaining the same wide input-voltage range and configurable operating functions as the Model 150.
Door opening width is configurable from 500 mm to 2800 mm, with opening speed adjustable from 450 to 750 mm/s and hold-open time from 0 to 20 seconds.
Full-opening and half-opening modes can be selected to suit traffic flow and energy requirements.
Control and safety features
Industrial PLC and inverter integrated controller for stable operation and resistance to electrical interference.
Integrated interfaces for sensors, drive commands and other signal switches.
High-precision magnetic encoder for smoother multi-stage speed control.
One-button door-width learning for easier commissioning.
Adjustable opening and closing behaviour for project-specific operation.
Overcurrent, overvoltage, overspeed and locked-rotor protection.
Obstruction response with rebound function and adjustable anti-pinch force.
Described in the brochure as reliability tested for more than 500,000 operating cycles.
Information required for selection
Please provide: single-leaf or bi-parting configuration; door-leaf weight and dimensions; clear opening width and required travel distance; door material, guide system and estimated running resistance; opening frequency and duty cycle; available input voltage; required activation devices, safety sensors and access-control interfaces; and installation drawings and available header space.
For project support and model selection, contact NINGBO AURWEN INDUSTRIES CO., LTD.
