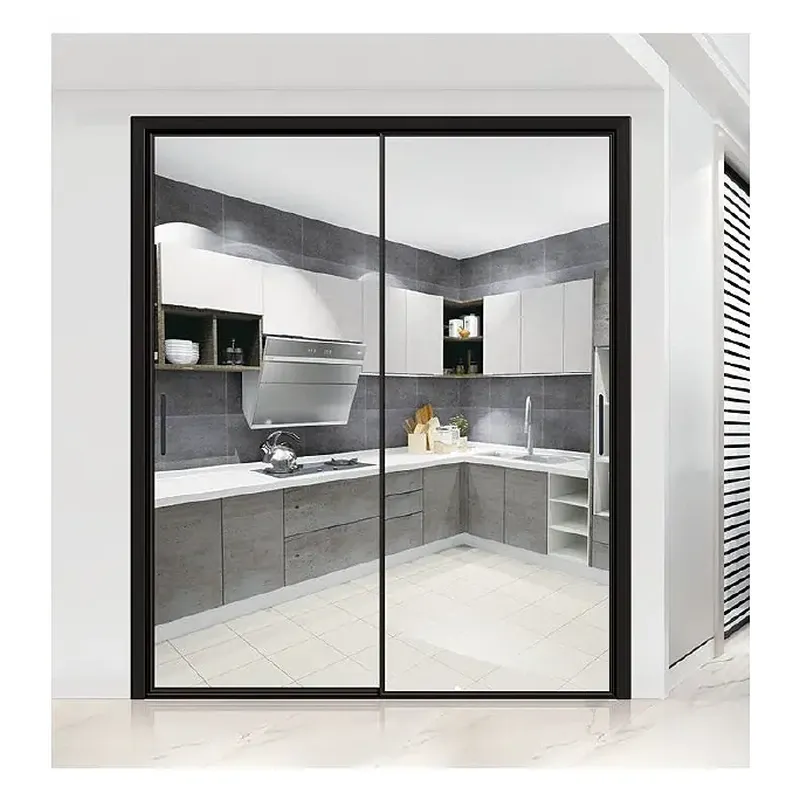

Profile 100 Magnetic Levitation Sliding Door System
Compact integrated profile system with a 100 mm-wide section and 66 mm height, for 30 to 150 kg sliding doors.
Specifications
- Operator length
- 1,000-12,000 mm, customised
- Operator size
- 66 mm high x 100 mm wide
- Door-leaf mass
- 30-150 kg
- Opening range
- 500-3,000 mm
- Opening / closing speed
- 0.2-0.5 m/s
- Hold-open time
- 0-30 s
- Rated power
- 120 W; reinforced version 300 W
- Average return power
- 30 W
- Operating temperature
- -40C to +60C
- Obstruction force
- 10 N or less
- Manual opening force
- Less than 10 N

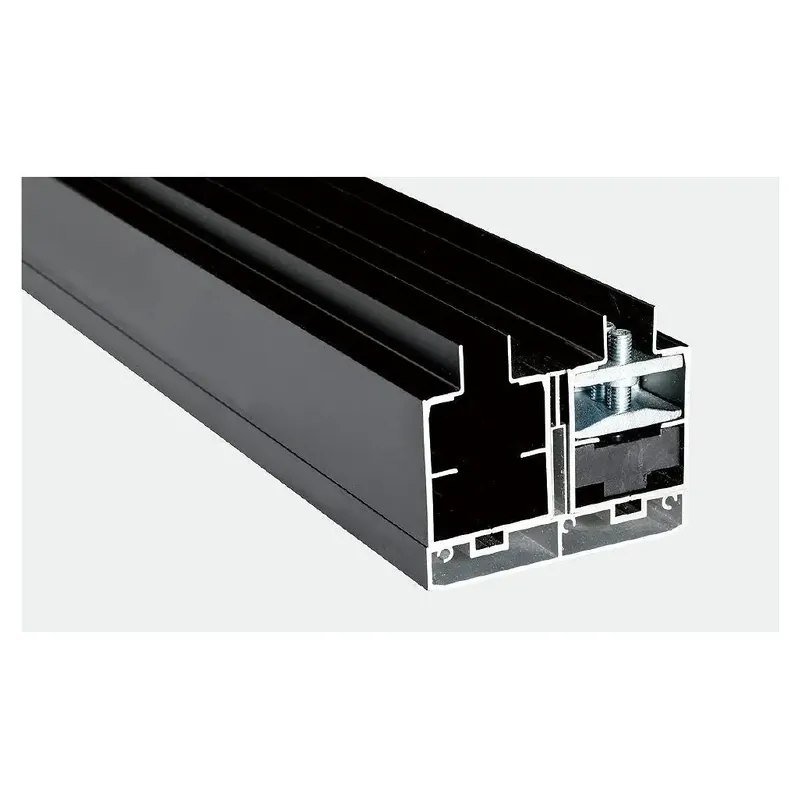

The Profile 100 Series is the compact integrated profile system in the range, using a 100 mm-wide, 66 mm-high section.
It suits 30-150 kg door leaves with an opening range from 500 mm to 3,000 mm.
Operating functions
Automatic, jog/inching, manual, one-way and locking modes.
Adjustable opening and closing speeds, braking distances and hold-open time.
Normally open and automatic full-open functions.
Automatic memory and push-to-open operation.
Obstruction reversal, overload protection and over-temperature alarm.
Centralised control capability and smartphone Bluetooth app support.
Standard configuration
Aluminium rail, drive unit, Bluetooth module, power system, aluminium moving rail, hanger assembly, load-bearing wheels, high-performance magnet and main control unit.
Hardware options
Available hardware for this operator includes glass hangers, stoppers, wooden-door hangers, floor-door connectors, electric locks, quick-install hangers and pulley assemblies. Selection depends on the door material, leaf construction and whether the door is framed, frameless or timber.
Activation and access-control options
Activation and access-control devices available for this operator include touch switches, remote controllers, miniature sensors and short-range presence sensors, round wireless switches, long-range presence sensors, wireless press switches and fingerprint terminals.
The required combination of activation and access-control devices is confirmed against the project configuration. Please state the intended devices, wiring route and power supply when requesting a quotation.
Information required for selection
Please provide: door type and material; number of door leaves and leaf weight; clear opening width and travel distance; required operator length and available installation space; surface-mounted or concealed installation; required activation devices and access-control interfaces; and power supply, usage frequency and environmental conditions.
Final capacity, dimensions, functions and component selection must be confirmed against the project drawing, door construction and the latest approved AURWEN technical data before ordering or installation.
For project support, contact NINGBO AURWEN INDUSTRIES CO., LTD.
