Top-Mounted 180 Degree Door Operator
Top-mounted automatic operator for 180 degree swing doors, with remote control, buffer adjustment, overload protection and anti-pinch safety.
Specifications
- Type
- Top-mounted operator
- Opening angle
- 90 or 180 degrees (configurable)
- Applicable door width
- 600-1200 mm
- Maximum door weight
- Less than 120 kg
- Hold-open time
- 0.5-10 seconds
- Opening speed
- Adjustable
- Closing speed
- Adjustable
Top-mounted operator option supporting automatic opening for swing doors made from different materials.
Operator functions
Remote-control operation; opening and closing buffer control; automatic overload protection; continuously adjustable locking force; anti-pinch protection; intelligent overheat protection; and 90 or 180 degree opening depending on configuration.
Applications
Automatic swing doors in hospital corridors and patient areas.
Configuration options
The hospital door range is supplied with a choice of edging: aluminum profile or stainless steel, selected per project.
Observation windows are available as black-edged flat glass in a range of sizes, including round and rectangular formats depending on the model.
Stainless-steel anti-collision strips can be specified where door edges take repeated trolley and bed traffic.
Door locks, closers, floor springs and access-control interfaces are available as project hardware, so the door leaf and the control hardware are specified together.
Activation and control options include infrared sensors, foot sensors, keypads and remote controls.
Recessed bottom sealing strips and fire seal strips are available on the models that support them.

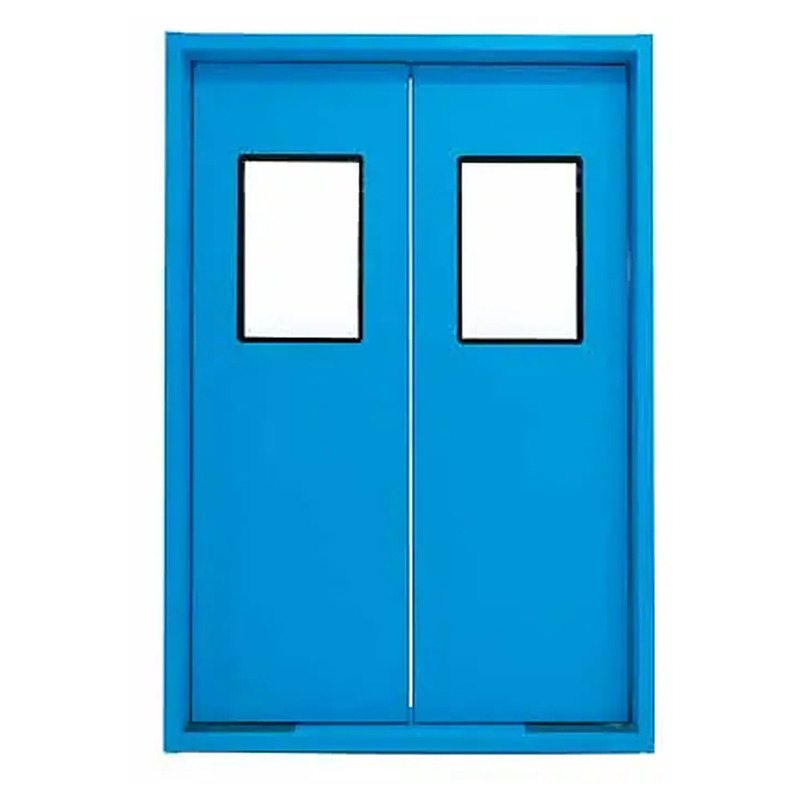

Leaf handing can be left-hand, right-hand, single-leaf, double-leaf or unequal-leaf to suit the opening.
Non-standard dimensions and project-specific detailing are available on request.
Specification and ordering notes
For accurate selection, provide the clear opening width and height, finished wall thickness, opening direction, door-leaf arrangement, required observation window, preferred finish, hardware schedule, activation method and any airtightness, fire or radiation-shielding requirements.
Final technical details should be verified against the approved project drawings before manufacture. Dimensions and options vary by model, so request a project-specific confirmation before ordering.
